Product Details

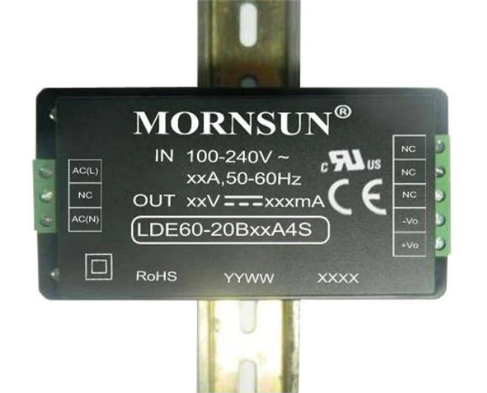

Encapsulated DIN Rail Switch Mode Power Supply Input: 85 ~ 264VAC/100 - 370VDC. Output 24VDC @ 2,5A. Terminal Block Term. 4KVAC Isolation
DIN Rail Switch Mode Power Supply
Feature
- Universal 85-264VAC or 100-370VDC input voltage
- Operating ambient temperature range: -40℃ to +70℃
- High I/O isolation test voltage up to 4000VAC
- High reliability, high power density, high efficiency
- Output short circuit, over-current, over-voltage protection
- Regulated output, low ripple & noise
- Plastic case meets UL94V-0 flammability
- EMI performance meets CISPR32 / EN55032 CLASS B
Downloads
Additional Information
| Device | Power Supply |
| Type | DIN Rail | Switch Mode |
| Input Voltage | 85 ~ 264VAC/100 - 370VDC |
| Output | 24VDC @ 2,5A |
| Size | 137.00 x 70.00 x 42.40 mm |
