Product Details

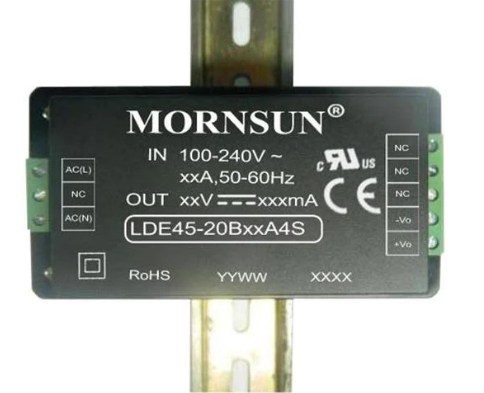

Encapsulated DIN Rail Switch Mode Power Supply Input: 85 ~ 264VAC/100 - 370VDC. Output 24VDC @ 1,9A. Terminal Block Term. 4KVAC Isolation
DIN Rail Switch Mode Power Supply
Feature
- Universal 85-264VAC or 100-370VDC input voltage
- Operating ambient temperature range: -40℃ to +70℃
- High I/O isolation test voltage up to 4000VAC
- Regulated output, low ripple & noise, low power consumption
- High efficiency, high power density
- Output short circuit, over-current, over-voltage protectionCB RoHS
- Plastic case meets UL94V-0 flammability
- EMI performance meets CISPR32 / EN55032 CLASS B
- IEC/EN/UL62368 safety approval
Downloads
Additional Information
| Device | Power Supply |
| Type | DIN Rail | Switch Mode |
| Input Voltage | 85 ~ 264VAC/100 - 370VDC |
| Output | 24VDC @ 1,9A |
| Size | 137.00 x 70.00 x 42.40 mm |
