Product Details

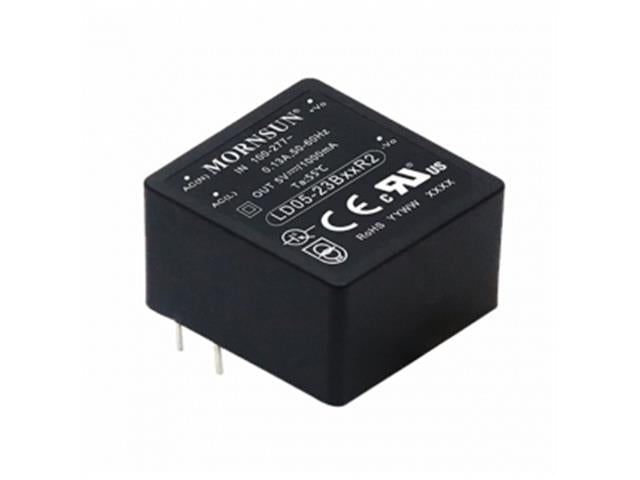

Encapsulated Mini PCB Mount Switch Mode Power Supply Input: 85 ~ 305VAC/100 - 430VDC. Output 5VDC @ 1A
PCB MOUNT SWITCH MODE POWER SUPPLY
SPECIFICATIONS
- Number of Outputs 1
- Voltage - Input 85 ~ 305 VAC, 100 ~ 430 VDC
- Voltage - Output 1 5V
- Current - Output (Max) 1A
- Power (Watts) 5 W
Applications : Household Appliances, ITE (Commercial)
- Operating Temperature : -40°C ~ 85°C (With Derating)
- Efficiency : 77.5%
- Mounting Type : Through Hole
- Package / Case : 5-DIP Module, 4 Leads
- Size / Dimension : 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm)
- Approval Agency : CB, CE, cURus
- Line Regulation : ±0.5%
- Load Regulation : ±1%
