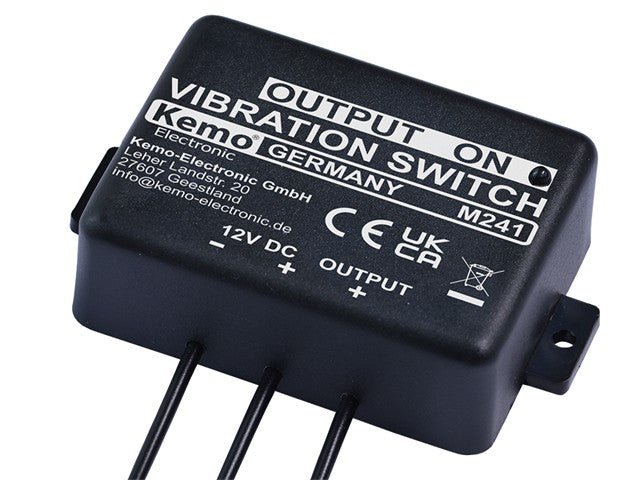

Vibration Switch 12VDC
Vibration Switch 12VDC
Overview
Vibration switch, switches 12 V devices off when vibrations occur (e.g. motor running noises) and on with a time delay at standstill. Operating voltage: 11 - 15 V. For devices up to a current consumption of approx. 1000 mA. Indication by a flashing LED. The vibration switch switches on e.g. signal horns when a machine (e.g. pump) switches off and no longer vibrates. Or a marten repellent, if the vehicle has no more engine vibrations or driver vibrations and is parked.
Specifications
- Operation voltage : 11 - 15 V direct current voltage
- Own current consumption : in case of vibrations, motor runs (LED off): < approx. 0.000005A (< 5μA)
- At rest, no vibrations (LED flashes) : < approx. 0.000008A (< 8μA)
- Max. switching current (max. current consumption of the connected device) : 1 A
- Switch-off delay during movement : approx. 3 seconds (depending on the intensity of the vibrations)
- Switch-on delay at end of movement : approx. 22 seconds
- Switching sensitivity : roughly adapted to the vibrations of an combustion engine in a motor vehicle
- Operating temperature range : approx. -20°C to +70°C
- Dimensions (without fixing straps) : approx. 60 x 45 x 20 mm
- At rest (no vibrations), the input voltage (11 - 15 V/DC) is switched through to the output and the connected device is in operation.
Additional Information
| Device | Vibration Switch |
