Product Details

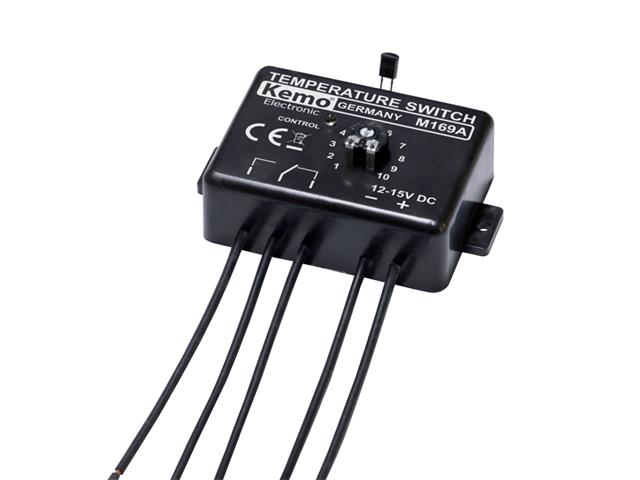

Temperature Switch-Thermostat 12V
Temperature Switch-Thermostat 12V
Overview
Adjustable electronic temperature switch. The sensor (Ø 5 mm) may be connected with the control electronics via a cable with a length of up to 1 m.
Specifications
- Operating Voltage : 12 - 15 V/DC stabilized (min. 0.1 A)
- Temperature Range : Approx. 0 - 100°C
- Switching Output : Relay Contact 1 x switc h over max. 5 A / 25 V
-
Dimensions : approx. 60 x 45 x 25 mm (without fixing straps) with trimming potentiometer.
- The Sensor (Ø 5 mm) may be connected with the control electronics via a cable with a length of up to 1 m
Downloads
Additional Information
| Device | Switch |
| Type | Temperature | Thermostat | 12V |
