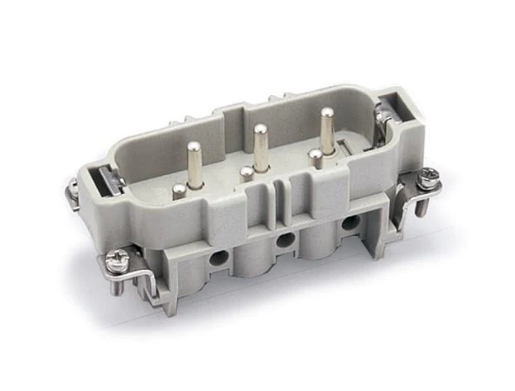

HSB-006-M - Heavy Duty Power Connectors Screw Termination
HSB-006-M - Heavy Duty Power Connectors Screw Termination
Regular price
Dhs. 83.60
Regular price
Sale price
Dhs. 83.60
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The HARTING Heavy Duty Power Connector features a male insert designed for robust power transmission.
This insert offers 6 positions plus a Protective Earth (PE) connection and utilizes a reliable screw termination style. It is capable of handling a current rating of 35 A and a voltage rating of 600 V. Constructed with a durable polycarbonate (PC) housing material and silver-plated copper alloy contacts,
This insert ensures excellent conductivity and long-term performance. It accommodates a wire gauge range from 16 AWG to 10 AWG. This particular insert has a housing/hood size of 16B and is packaged in bulk, with a unit weight of 84.620 g.
SPECIFICATIONS
| Inserts | |
| Number of contacts | 6+PE |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 35A |
| ---Rated voltage conductor - ground | 400V |
| ---Rated voltage conductor - conductor | 690V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---or | 35A 500V 6kV 3 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| ---Wrie gauge | 1.5-6mm² |
| ---AWG | 10 |
| ---Tightening torque | 1.2Nm |
ACCESSORIES
Please Click here to view list of Accessories for Size 16B
