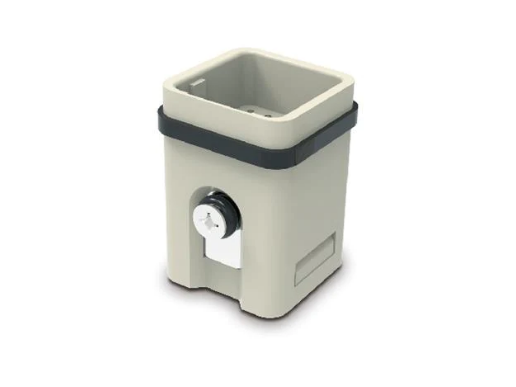

HQ-021-MC- Heavy Duty Power Connectors Han Q High Density -M-
HQ-021-MC- Heavy Duty Power Connectors Han Q High Density -M-
Regular price
Dhs. 55.36
Regular price
Sale price
Dhs. 55.36
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Han Heavy Duty Power Connector features a male insert designed for robust power and signal transmission.
This particular insert offers 21 positions and utilizes a crimp termination style for secure and reliable connections. It has a current rating of 6.5 A and a voltage rating of 50 V. The insert is sized to fit a 3A housing/hood and is constructed from durable Polycarbonate (PC).
This component, part of the Han tradename series of Power Connectors and specifically within the Heavy Duty Power Connectors subcategory, is supplied in bulk packaging and has a unit weight of 8.760 g.
Article No. 130 021 010 0001
Industry No. 09120213001
Size: 3A
Series: Q21/0 (C)
Datasheet HQ-021-MC
SPECIFICATIONS
| Inserts | |
| Number of contacts | 21 |
| Electrical data acc. to EN 61 984 | |
| -Rated current | 6.5A |
| -Rated voltage | 50V |
| -Rated impulse voltage | 0.8KV |
| -Pollution degree | 3 |
| Rated voltage AC | 50V |
| Rated voltage DC | 120V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| hard-gold plated | |
| Contact resistance | ≤3mΩ |
| Crimp terminal | |
| ---mm2 | 0.09-0.52mm2 |
| ---AWG | 28-20 |
ACCESSORIES
Please Click here to view list of Accessories for Size 3A
