Product Details

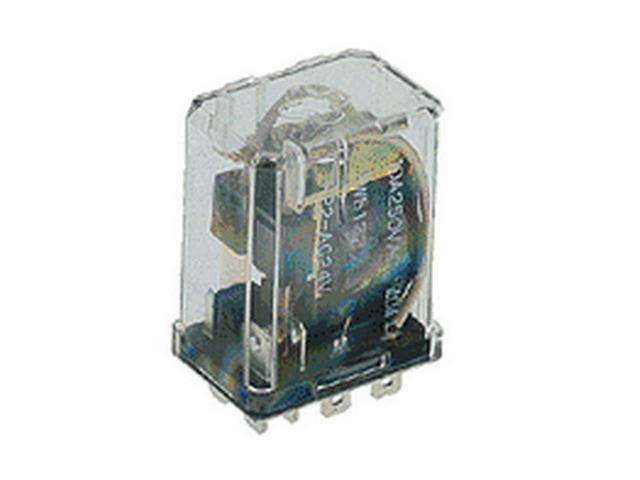

Medium - Hi Power Relay • Form 4C • VCoil= 110V DC • IMax Switching= 10A • RCoil= 7kΩ • Plug-In • Vertical Case
Overview
Features
Vertical Case
Specification
| Model | HP4DC110V |
| Contact Form | Form 4C |
| Size Category | Large |
| Size | 36x50x44mm |
| Termination | Plug-In |
| Coil Rated Voltage | 110V |
| AC/DC Voltage | DC |
| Max. Switching Current | 10A |
| Electrical Rating | 10A/250VAC |
| Coil Power | 1.7W Power |
| Coil Resistance | 7kΩ |
| Isolation Voltage | 1K5V |
| Approvals | UL/CSA |
| Contact Material | Ag |
| No. of Pins | 14 Pin(s) |
| No. of Poles | 4 Pole(s) |
