Product Details
HikLook ColorVu Bullet Network Camera 2MP 2.8mm Lens, Up to 30m IR, 1/2.8" CMOS, H.265+, 24/7 Vivid Colorful Images, 32 Kbps~8Mbps, CBR, VBR, iVMS-4200, Hik-Connect, WDR, 1xRJ45 10M/100M, 12VDC ± 25%, 0.4A, PoE:802.3af, IP67

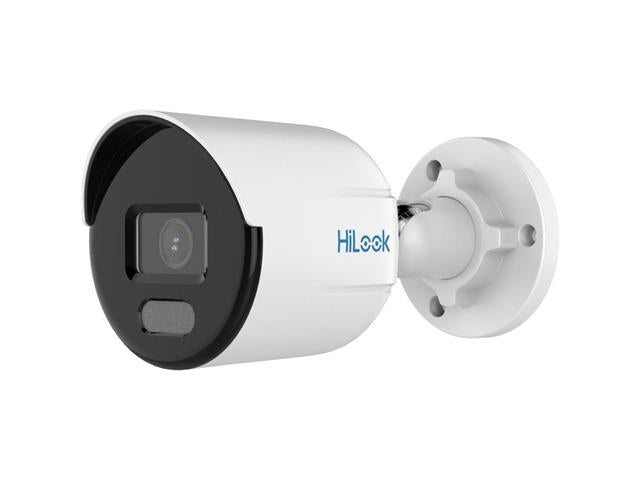

2 MP ColorVu Fixed Bullet Network Camera
Overview
Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses and high performance sensors.
F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the
utilization of available light.
Feature(s)
- High quality imaging with 2 MP resolution
- Support Human and Vehicle Detection
- Water and dust resistant (IP67)
- Efficient H.265+ compression technology
Specifications
Camera
- Image Sensor : 1/2.8" Progressive Scan CMOS
- Max. Resolution : 1920 × 1080
- Min. Illumination : Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time : 1/3 s to 1/100,000 s
- Day & Night : 24/7 color imaging
- Angle Adjustment : Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV : 2.8 mm, horizontal FOV: 106°, vertical FOV: 57°, diagonal FOV: 126°
- Lens Mount : M12
- Iris Type : Fixed
- Aperture : F1.0
- Depth of Field : 2.8 mm: 1.5 m to ∞
DORI
- DORI : 2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m
Illuminator
- Supplement Light Type : White Light
- Supplement Light Range : Up to 30 m
- Smart Supplement Light : Yes
Video
-
Main Stream
- 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
-
Sub-Stream
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
-
Video Compression
- Main stream: H.265+/H.265/H.264+/H.264,
- Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate : 32 Kbps to 8 Mbps
- H.264 Type : Baseline Profile,Main Profile,High Profile
- H.265 Type : Main Profile
- Bit Rate Control : CBR,VBR
- Region of Interest (ROI) : 1 fixed region(s) for main stream
Network
- Protocols : TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
- Simultaneous Live View : Up to 6 channels
- API : Open Network Video Interface (Profile Ｓ, Profile Ｔ),ISAPI,SDK
-
User/Host
- Up to 32 users
- 3 user levels: administrator, operator, and user
- Security : Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Client : iVMS-4200,Hik-Connect
-
Web Browser
- Plug-in required live view: IE 10, IE 11,
- Local service: Chrome 57.0+, Firefox 52.0+
- Wide Dynamic Range (WDR) : Digital WDR
- SNR≥ : 52 dB
- Day/Night Switch : Day,Night,Auto,Schedule
- Image Enhancement : BLC,HLC,3D DNR
- Image Settings : Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Privacy Mask : 4 programmable polygon privacy masks
Interface
- Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
- Basic Event : Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Linkage : Upload to FTP,send email,notify surveillance center,trigger capture
General
-
Power
- 12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,
- PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- Material : Aluminum alloy body
- Dimension : Ø76.6 mm × 164.4 mm (Ø3 × 6.5\")"
- Package Dimension : 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
- WeightApprox. 410 g (0.9 lb.)
- With Package Weight : Approx. 625 g (1.4 lb.)
- Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language : English, Ukrainian
- General Function : Heartbeat,anti-banding,mirror,password protection,password reset via email
Downloads
Additional Information
| Device | Camera |
| Type | 2 MP | ColorVu | Fixed | Bullet | Network |
