Product Details

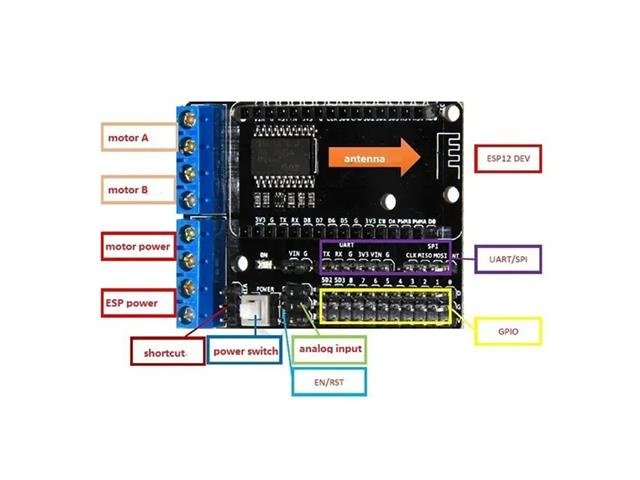

Motor Shield for ESP-8266 Boards Based on the ESP-12E. Using this Module, You can simply create an Intelligent RC WIFI Machine. The main chip of this Shield is the L293D and can Directly Drive Two DC Motor Channels or one Stepper Motor Channel.
Motor Shield for ESP-8266 Boards
Specifications
- Motor power (VM): 4.5 ~ 36V
- Control power (VIN): 4.5V ~ 9V(10V MAX)
- Provide the shortcut connector (short by VM and VIM), thus can use
- May use common power source (4.5V~9V) by shorting VM and VIM
- Controller Current (Iss): ≤60mA (Vi=L), ≤(Vi=H);
- Motor working current (Io): ≤1.2A;
- Max power dissipation: 4W(T=90℃)
- Control signal input voltage:
- 2.3V≤VIH≤VIN (high)
- -0.3V≤VIL≤1.5V (low)
- Working temperature: -25℃ ~ +125℃ (non condensing)
- Motor Drive: Dual high power H bridge
- D1, D3 (motor A)
- D2, D4 (motor B)
- Finishing off the board there is even a nice big ON/OFF power switch and LED power indication.
- 1 x Smart Robot Car Motor Driver Expansion Board
Package included:
Additional Information
| Device | Motor Shield |
| Type | ESP-8266 Boards |
