Product Details
Magnetic Active GPS Antenna with Cable -Centre Freq: 1575.42 MHz ± 3 MHz

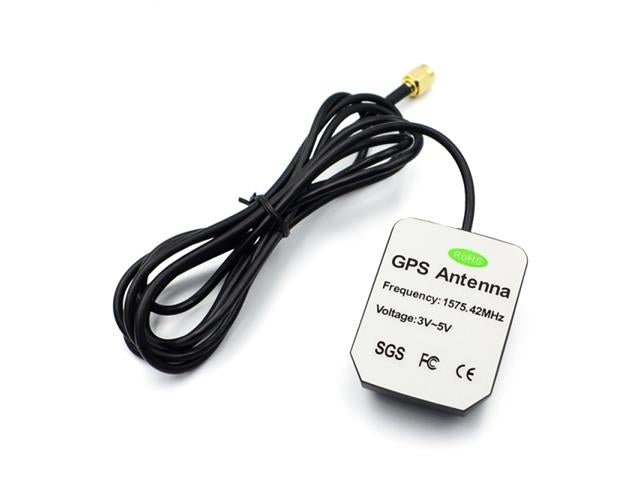

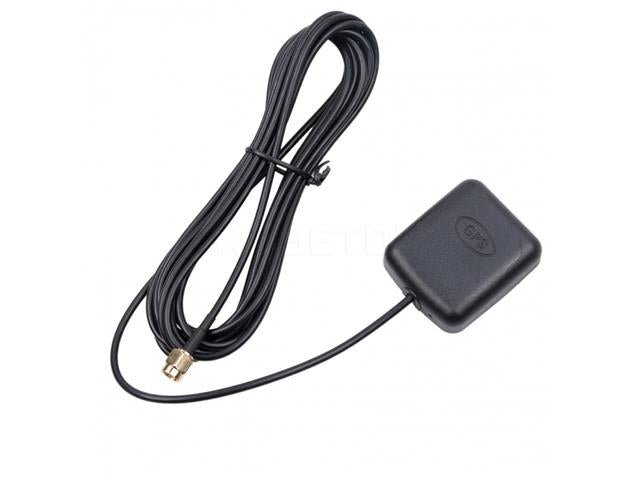

Magnetic Active GPS Antenna
Overview
This is a GPS Active Antenna which can make you received the GPS form indoor. Its cable is 3m. It can be used with our GPS Shield to make the GPS Shield can be used in the home or somewhere don't have GPS signal.
Specifications
- Active antenna you need to power it up. High Gain Antenna.
- Center frequency : 1575.42 MHz ± 1 MHz
- VSWR : 1.5: 1
- Bandwidth : ± 5 MHz
- Impedance : 50 ohm
- Polarization Type : RHCP
- Amplifier Gain : 29 ± 2 dB Typical
- Noise Figure : 1.5 dB
- DC voltage : 2.7 ~ 5 V
- DC current : 5 ~ 16 mA

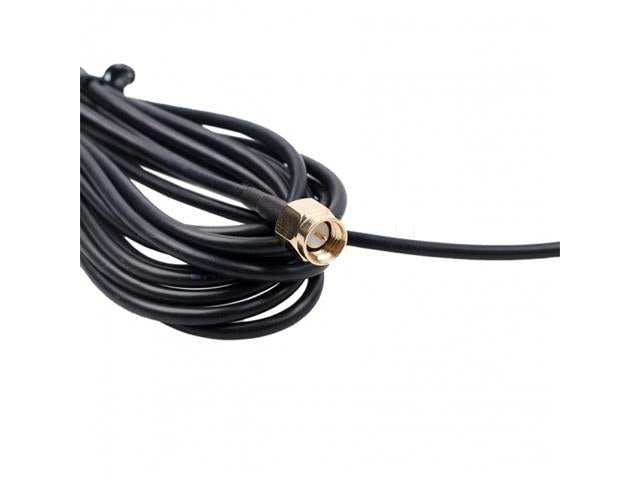

- Cable : RG174 3M
- Connector : SMA
- Shell color : Black
Additional Information
| Device | Antenna |
| Type | Magnetic | Active GPS |
