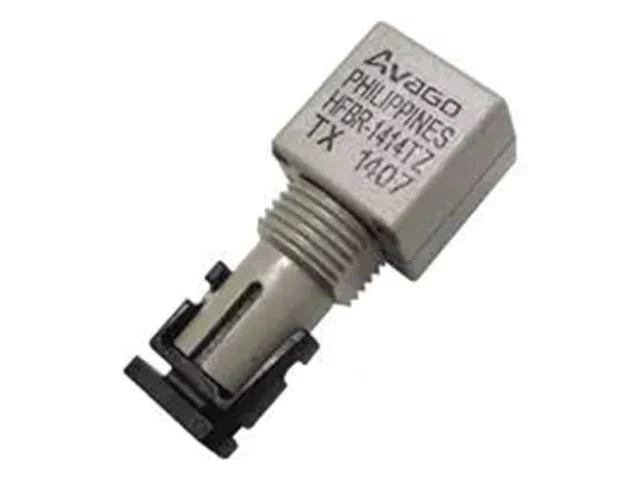

Fibre Optic Transmitter 850NM Threaded ST Connector

850NM Threaded ST Connector

Feature(s)

RoHS compliant
Meets IEEE 802.3 Ethernet and 802.5 token ring standards
Meets TIA/EIA-785 100Base-SX standard
Low-cost transmitters and receivers
Choice of ST®, SMA, SC or FC ports
820 nm wavelength technology
Signal rates up to 160 MBd
Link distances up to several kilometers
Compatible with 50/125 µm, 62.5/125 µm, 100/140 µm, and 200 µm Plastic-Clad Silica (PCS) Fiber
Repeatable ST connections within 0.2 dB typical
Unique optical port design for efficient coupling
Pick and place, and wave solderable
No board mounting hardware required
Wide operating temperature range -40 °C to +85 °C
Conductive port option

Device	Connector
Type	850NM \| Threaded
