Product Details

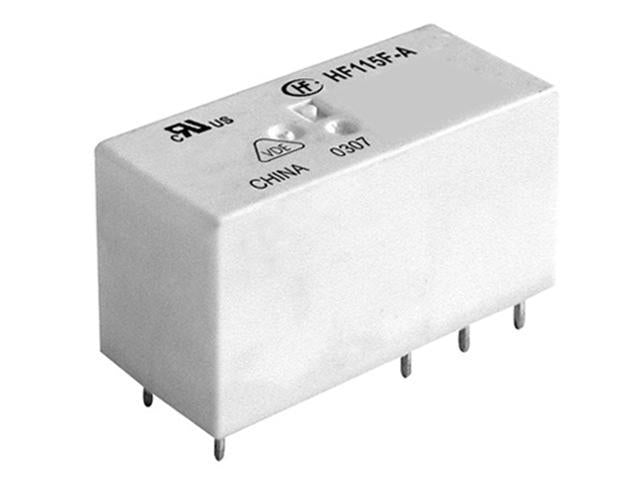

Relay PCB 1C 230VAC 12A 32500E P= 3,5mm
Relay PCB 1C 230VAC 12A
Features
- Plastic Sealed
- Low Profile Case ,Insulation Class B
- 10mm Creepage Distance
- 3,5mm Pin Pitch
Downloads
Additional Information
| Device | Relay |
| Type | PCB | 1C | 230VAC | 12A |
| Contact Form | Form 1C |
| Size Category | Mini |
| Size | 29.0x12.7x15.7mm |
| Termination | PCB |
| Coil Rated Voltage | 230V |
| AC/DC Voltage | AC |
| Max. Switching Current | 12A |
| Electrical Rating | 12A 230VDC |
| Coil Resistance | 32.5kΩ |
| Isolation Voltage | 5KV |
| Approvals | UL/CUL/VDE |
| Contact Material | AgCdO |
| No. of Pins | 5 Pin(s) |
| No. of Poles | 1 Pole(s) |
