Product Details

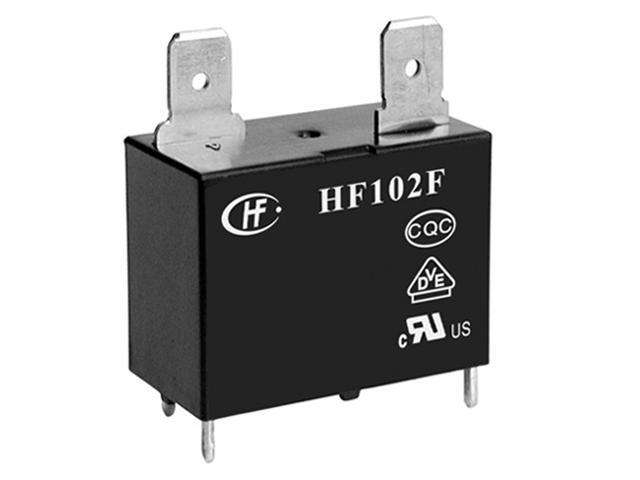

Miniature High Power Relay, Form 1A, VCoil= 12V DC, IMax Switching= 25A , RCoil= 160Ω, PCB & QC, in Vertical Case
Specifications
Insulation Class F
Additional Information
Model : HF102F-T-12VDC
Contact Form : Form 1A
Size Category : Mini
Size : 30.5x16.x23.5mm
Termination : PCB | Quick Connect
Coil Rated Voltage : 12V
AC/DC Voltage : DC
Max. Switching Current : 25A
Coil Power : 900mW Power
Coil Resistance : 160Ω
Isolation Voltage : 4K5V
Approvals : UL/CUL/VDE
Contact Material : AgSnO2
No. of Pins : 4 Pin(s)
No. of Poles : 1 Pole(s)
Downloads
HF102F Datasheet(PDF)
