Product Details

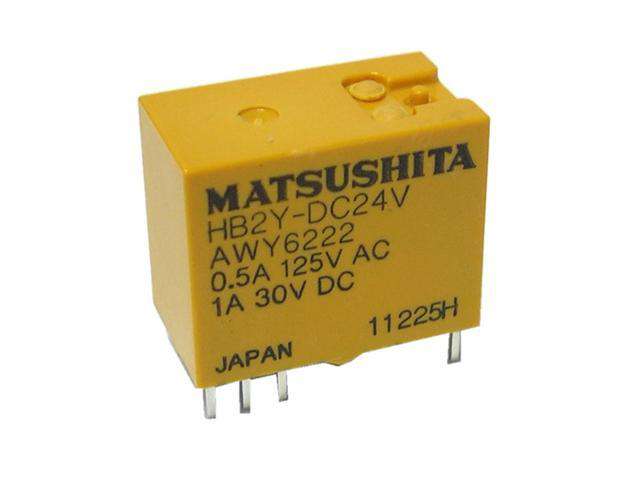

Low-Medium Power Relay • Form 2C • VCoil= 24V DC • IMax Switching= 1A • RCoil= 1kΩ • PCB
Overview
Features
Horizontal Case
Specification
| Model | HB2YDC24V |
| Contact Form | Form 2C |
| Size Category | Small |
| Size | 20x11x16mm |
| Termination | PCB |
| Coil Rated Voltage | 24V |
| AC/DC Voltage | DC |
| Electrical Rating | 1A/30VDC - 0.5A/125VAC |
| Coil Power | 576mW Power |
| Coil Resistance | 1kΩ |
| Isolation Voltage | 1KV |
| Approvals | UL/CSA |
| Contact Material | Ag |
| No. of Pins | 6 Pin(s) |
| No. of Poles | 2 Pole(s) |
