Product Details

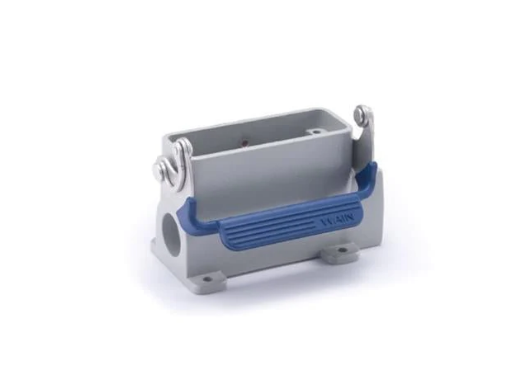

Surface Housing High Metal (56mm) with 1 Locking Lever Side Entry For "16A" Series. 1xM25 IP65
Surface Housing High Metal
Specifications
| Material | aluminium die-cast |
| Colour | Grey |
| Locking element | |
| ---Lever type | metal elastic pressing |
| ---Material | Stainless steel+TPR |
| Hoods/Housing sealing | NBR |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc.to UL 94 | V0 |
| Degree of protection acc.to EN 60529 for coupled connector | IP65 |
Downloads
Additional Information
| Device | Housing |
| Type | Surface | High Metal |
