Product Details
FNIRSI DPOS350P 4-IN-1 Tablet Oscilloscope 350MHZ, Spectrum Analyzer 200Khz - 350Mhz, Frequency Response Analyzer DDS Generator, 2Ch Handheld Oscilloscope 1 GSA/S, 7" Touch Screen Digital Phosphor
350MHz 4-IN-1 Tablet Oscilloscope
Overview
The DPOS350P is a high-performance, feature-rich all-in-one oscilloscope, suitable for a wide range of industrial and research applications. With its powerful integrated design, high sampling rate, and wide bandwidth, it can accurately analyze complex signals, provide clear waveform display, and smart triggering. The built-in high-resolution display, touch operation, intelligent triggering, and multiple measurement modes make it a precise and reliable tool for testing and analysis in laboratories, production lines, and maintenance sites.
Features
Specifications
| Model | DPOS350P |
| Power-on configuration | 5 preset items |
| Charging requirements | QC18W - 12V/1.5A (Type-C) |
| Languages | Chinese / English / Russian / Portuguese |
| Battery specifications | 3.7V, 8000mAh lithium battery |
| Screen size | 7 inches |
| Standby time | about 3 hours |
| Screen resolution | 1024 × 600 pixels |
| Charging time | Startup ≈ 5 Hours |
| Screen technology | IPS full viewing angle |
| Total power consumption | 10W |
| Interaction mode | Capacitive touch screen |
| Heat dissipation | Air cooling |
| Expansion interface | USB data port |
| Dimensions | 190mm × 128mm × 37mm |
| Automatic shutdown | 15 minutes ~ 1 hour / off |
| Firmware upgrade | Supports .iso image upgrade |
| Storage Temperature Range | -20℃ ~ 60℃ |
Oscilloscope Parameters
| Specification | Details |
|---|---|
| Analog Channels | 2 |
| Analog bandwidth | 350MHz |
| Rise time | 1nS |
| Max sampling rate | 1GSPS |
| Memory depth | 60Kpts |
| Input impedance | 1MΩ / 14pF |
| Time base range | 5nS ~ 50S |
| Roll time base | 50mS ~ 50S |
| Vertical sensitivity | 2mV ~ 20V (1X) |
| Vertical range | 16mV ~ 160V (1X) |
| DC accuracy | ±2% |
| Time accuracy | ±0.01% |
| Input coupling | DC / AC |
| Probe attenuation | 1X / 10X / 100X |
| Hardware bandwidth limit | 150M / 20M |
| High resolution mode | 8bit ~ 16bit |
| Parameter measurements | 12 types |
| Cursor measurement | Time, period, frequency, level, voltage |
| Trigger detection | Digital trigger |
| Trigger channel | CH1 / CH2 |
| Trigger mode | Auto / Single / Normal |
| Trigger edge | Rising / Falling |
| Trigger suppression | L1 ~ L3 |
| Trigger level | Manual / Auto 10% ~ 90% |
| Screenshot storage | 90 pictures |
| Waveform storage | 500 groups |
| Background grid | Display / Hide |
| Waveform movement | Coarse adjustment / Fine adjustment |
| Overvoltage protection | Withstand voltage 400V |
| Waveform brightness | Adjustable |
| Simple FFT display | Supported |
| Digital fluorescence | Supported |
| Color temperature display | Supported |
| X-Y mode | Supported |
| ZOOM time base | Supported |
| One-key auto adjustment | Supported |
| One-key return to zero | Supported |
| Data browser | Supported |
Signal Generator Parameters
| Specification | Details |
|---|---|
| Waveform types | 14 standard functions + captured waveform |
| Frequency | 0 ~ 50MHz (sine wave only, others up to 10M/5M/3M) |
| Amplitude | 0 ~ 5VPP |
| Offset | -2.5V ~ +2.5V |
| Duty cycle | 0.1% ~ 99.9% |
| Frequency resolution | 1Hz |
| Amplitude resolution | 1mV |
| Offset resolution | 1mV |
| Duty cycle resolution | 0.1% |
| Custom captured waveform | 500 groups |
Frequency Response Analyzer
| Specification | Details |
|---|---|
| Excitation frequency | 100Hz ~ 50MHz |
| Excitation amplitude | 0 ~ 5VPP |
| Excitation offset | -2.5V ~ +2.5V |
| Excitation frequency count | 20 ~ 500 |
| Cursor measurement | Frequency / Gain / Phase |
| Operating mode | Single / Cyclic |
| System calibration | Supported |

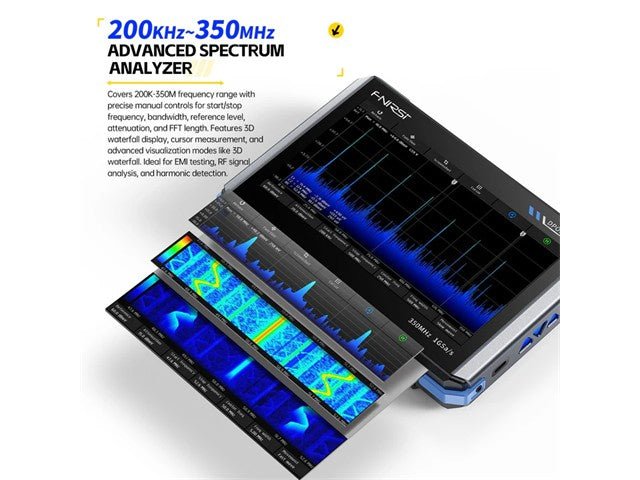

Spectrum Analyzer
| Specification | Details |
|---|---|
| Conversion method | FFT |
| FFT length | 4K ~ 32K |
| Frequency range | 200KHz ~ 350MHz |
| Level range | -60dBmV ~ +260dBmV |
| Cursor measurement | Frequency / Amplitude |
| Marking parameter | Maximum energy harmonic |
| Waterfall chart | Supported |
| 3D waterfall chart | Supported |
| Automatic adjustment | Supported |
| System calibration | Supported |
Package List
-
DPOS350P Host ×1
-
QC18W Fast Charger ×1 (US or EU Plug)
-
350MHz Probe ×2
-
Storage Bag ×1
-
Alligator Clip ×1
-
USB Data Cable ×1
-
User Manual ×1
-
Packing Box ×1
Special Precautions
-
Both probe ground clips must be connected together. Never connect to different potentials (e.g., separate ends of high-power/AC circuits). Doing so risks damaging the mainboard.
-
Maximum BNC input tolerance: 400V. Never exceed this on a 1X probe.
-
Always use the provided charger. Using test equipment power supplies or USB can cause ground loops and short-circuits.
-
For high-frequency, high-voltage signals: use 100X probes (ultrasonic welders/cleaners, etc.), or even 1000X probes (high-frequency transformers, induction heating, etc.).
Downloads
Additional Information
| Device | Oscilloscope |
| Type | 350MHz | 4-IN-1 | Tablet |
