Product Details
Voltage & Continuity Tester 6-690V 0~400Hz Pase Rotation 100V-690V <0.1s CATIII 690V CATIV 600V IP64

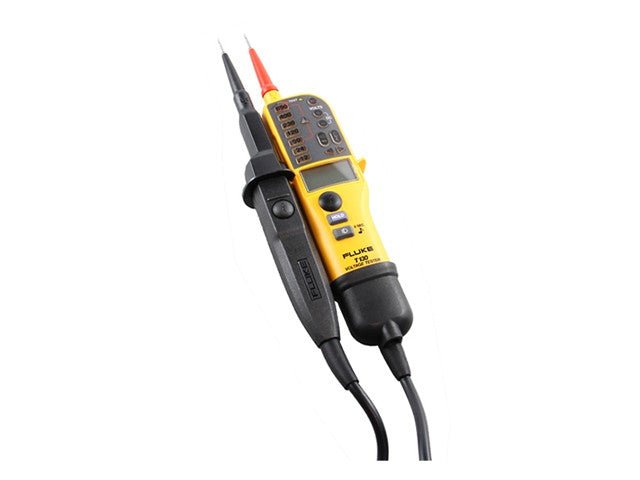

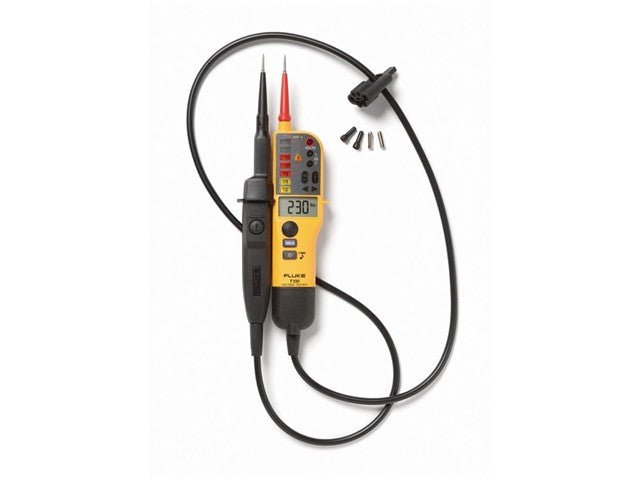

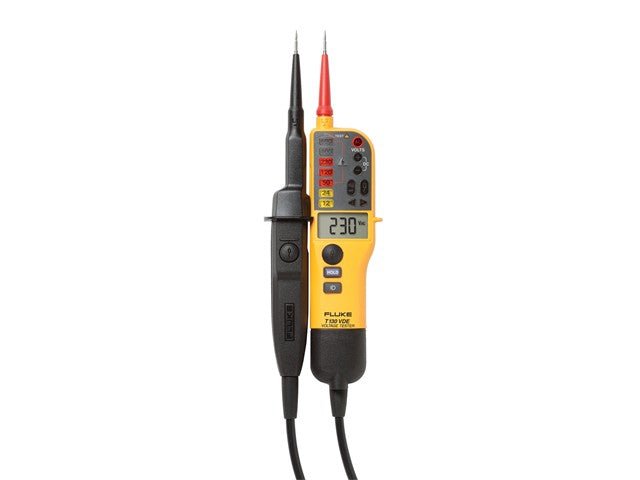

Voltage & Continuity Tester
Overview
The best combination of safety, ease-of-use and fast answers available anywhere. Built to work the way you work.
This voltage tester is the perfect tool for you with: large, easy-to-use buttons, a bright backlit LED indicator and LCD display, display hold, and clear audible and vibrating voltage indicators designed for any work situation.
Features
- Designed according to IEC EN 61243-3:2014 to verify the absence of voltage – even with discharged batteries
- CAT IV 600 V, CAT III 690 V safety rating
- Redesigned cable assembly for superb reliability on the job
- With 4 ways to indicate the presence of voltage – LED indicator, LCD display, audible tone or tactile feedback, always know if hazardous voltage is present
Specifications
| Specifications | T130 |
|---|---|
| Voltage AC/DC | 6V - 690V |
| Continuity | 0 - 400 kΩ |
| Frequency | 0 / 40 - 400 Hz |
| Phase rotation | 100 V - 690 V |
| Resistance measurement | - |
| Response Time (LED indicator) | < 0.5 s |
| 200 kΩ input impedance | Current draw 3,5 mA @ 690 V Current draw 1,15 mA @ 230 V |
| 7k Ω input impedance (with load buttons pressed) | Current draw 30 mA @ 230 V |
| Safety rating | CAT III 690V CAT IV 600V |
| IP rating | IP64 |
| Power requirement | 2-AAA batteries |
| Net weight | 280 g (9.9 oz) |
| Size (LxWxH) | 26 cm x 7 cm x 3.8 cm |
| Warranty | 2 years |
| Country of origin | Great Britain |
Downloads
Additional Information
| Device | Tester |
| Type | Voltage & Continuity |
