Product Details

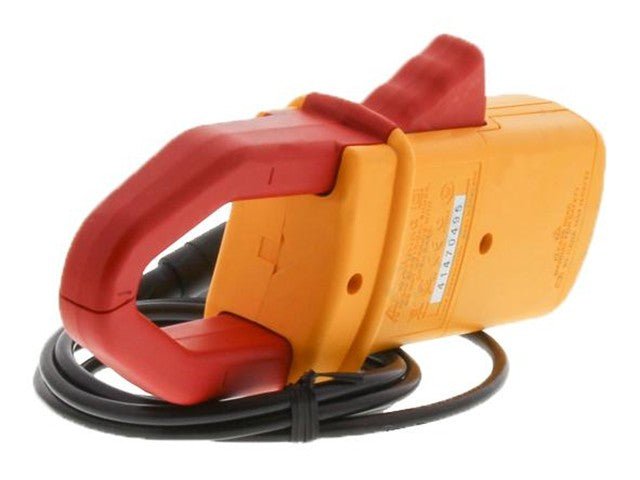

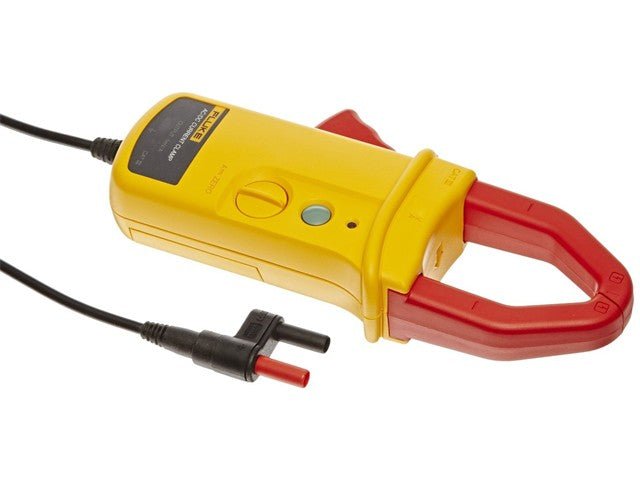

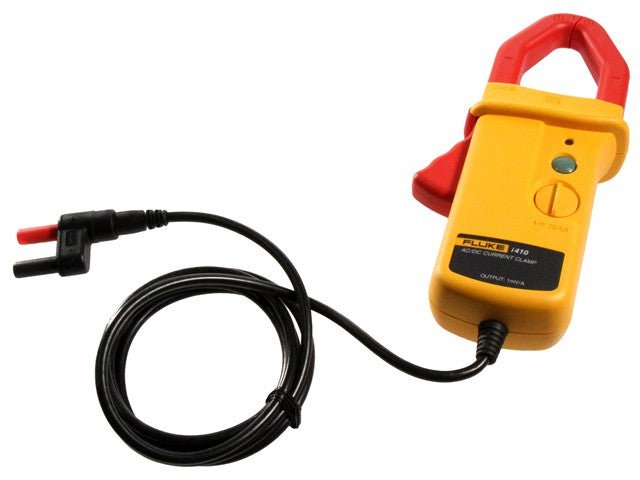

1 A - 400 AC/DC Current Clamp
Clamp Meter
Features
- Battery-powered Hall-effect probe measures 1A to 400 A
- 1mV/Amp output guarantees easy reading on your meter
- Take accurate current readings without breaking the circuit
- Maximum conductor Ø 32 mm
- CAT III 600 V safety rating
Specifications
| Measurement type | Hall sensor |
| Nominal current range | 400 A, AC/DC |
| Continuous current range | 1 A - 400 A AC/DC |
| Maxium non-destructive current | 400 A |
| Lowest measureable current | 0.5 A |
| Basic accuracy | 3.5% + 0.5 A (% reading + floorspec) |
| Useable frequency | DC - 3 kHz |
| Output level(s) | 1 mV/A |
| Zerro error adjustmemt | Yes |
| Safety Specifications | |
| Safety | CAT III, 600 V |
| Maximum voltage | 600 V |
| Mechanical and General Specifications | |
| Warranty | 1 year |
| Battery life | 9 V, 60 h |
| Maximum conductor diameter | 30 mm 2 x 25 mm |
| Output cable length | 1.6 m |
| Shrouded banana plugs | Yes |
Downloads
Additional Information
| Device | Clamp Meter |
| Type | AC-DC Current |
| Highlights | CAT III 600V |
