Product Details

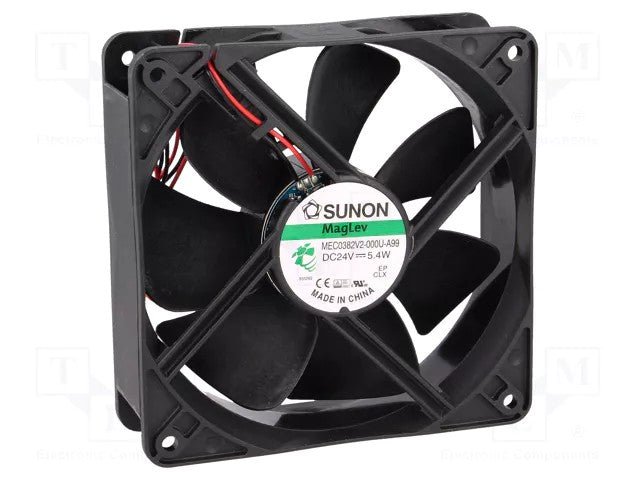

Fan 120x120x38mm 24VDC Vapo Bearing AF=116 (CFM) 2600RPM 224mA 5.4W 44DBA Sunon
24VDC Vapo Bearing Fan
Specifications
Electric Characteristic
- Rated Voltage : 24 VDC
- Rated Current : 224 mA
- Rated Power Consumption : 5.4 Watts
- Operating Voltage Range : 10~27.6 VDC
- Starting Voltage : 10 VDC (25 deg. C POWER ON/OFF)
- Operating Temperature Range : -10 to + 70 deg. C
- Storage Temperature Range : -40 to + 70 deg. C
Performance Characteristic
- Rated Speed : 2600 RPM ± 10% at rated voltage
- Air Flow : 116 CFM
- Static Pressure : 0.26 Inch-H2O
- Acoustic Noise : 44 dB(A)
Downloads
Additional Information
| Device | Fan |
| Type | 24VDC | Vapo Bearing |
