Product Details

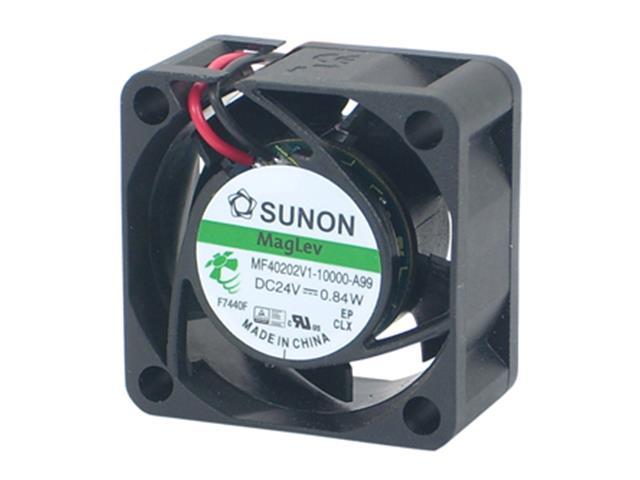

Fan 40x40x20mm 24VDC Vapo Bearing AF=8.9(CFM) 7000RPM 32mA 0.84W 25.5DBA
4VDC Vapo Bearing Fan
Specifications
- Rated Voltage : 24 VDC
- Rated Current : 32 mA / Max. 39 mA
- Rated Power Consumption : 0.77 Watts / Max. 0.94 Watts
- Safety Power Consumption : 0.84 Watts
- Operating Voltage Range : 8~27.6 VDC
- Starting Voltage 8 VDC (25 deg. C Power ON/OFF)
- Operating Temperature Range -10 to + 70 deg. C
- Storage Temperature Range : -40 to + 70 deg. C
Performance Characteristic
- Rated Speed : 7000 RPM ± 15% at rated voltage
- Air Flow : 8.9 CFM
- Static Pressure : 0.22 Inch-H2O
- Acoustic Noise 25.5 dB(A)
Downloads
Additional Information
| Device | Fan |
| Type | 4VDC | Vapo Bearing |
