Product Details
4CH AHD SVR 1080N with a Powerful Huawei Chipset with H.264, Linux OS and 2 Sata HDD
Overview
Features
- Powerful Huawei Chipset
- H.264
- LINUX OS
- 2 SATA HDD (each max support 6TB) Not Included
Power
- 12V/4A.VGA & HDMI Output
- 4CH RCA Audio Input
- 1 RCA Out
- 2CH Alarm Input
- Alarm Output
Specification

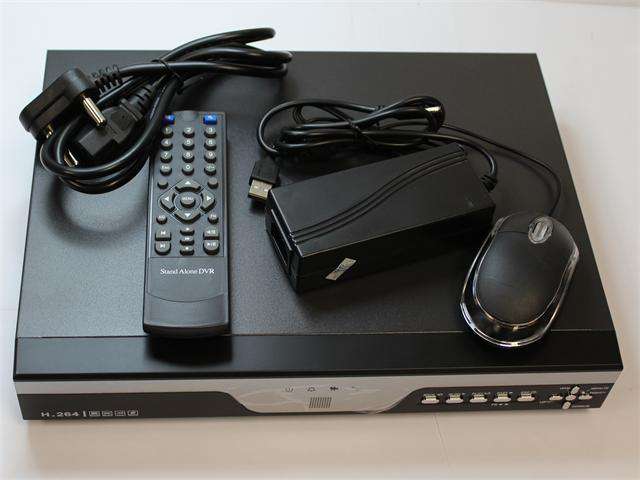

- Model | DVR XY6204 AHD 1080N
- System | Main processor | Industrial grade embedded micro controller chip Huawei HIS chipset
- Operating System | Embedded LINUX Operating System
- System Resource | Multi-Channel Real-Time Recording Synchronously, Multi-Channel Real-Time Playback, Multi-Channel Multi-User Network Operation, USB back up.
- Display | Operation interface | 16 bit real color GUI interface support mouse operation
- Display screen (Take all analog input as an example, others are depended on the selected channel mode) and 1/4 screen
- Video | Image encode | H.264(High Profile)
- Monitor quality | VGA : 1080P, HDMI : 1080P
- Playback quality | Max support 1080P under HVR and NVR mode, Max support AHD 1080P under DVR mode
- Encode capability | 4CH AHD 1080N real time(DVR mode)
- Decode capability | 4CH AHD 1080N (DVR mode)
- Multi-Mode Video Input | DVR Mode | 4CHx1080N/4CHx720P/4CHxAHDL
- HVR mode | 4CHx720P (AHD) +4CHx720P(IPC)
- NVR mode : 8CHx1080P /4CHx1080P/1CHx1080P
- Motion detection | Each channel can set 192 (16*12) detection area, can set multi-level of flexibility (for local analog channel only)
- Audio | Audio compression | G.711A
Record and playback
- Record mode | Manual, alarm, motion detection, timing
- Local playback | 1-4ch playback synchronously, Under the mode of DVR, Max support 4CH AHD 1080N playback synchronously
- Video search | Time, date, event, channel search
Storage and back up Space and Others
- Video | CIF 4~5G/day*channel | D1 8~10G/day*channel 720P 20G/day*channel | 960H 12~20G/day*channel | audio | 691.2M/day*channel
- Video storage | Local HDD, Network
- Back Up Mode | Network Backup, USB portable HDD, USB DVD-RW
- Interface | Video input | 4CH BNC
- Video output | 1CH VGA, 1CH HDMI
- Audio input | 4CH RCA
- Audio output | 1CH RCA
- Alarm input | 2CH
- Alarm output | 1CH
- Network port | RJ45 10M/100M Self-adaptive Ethernet Port
- PTZ control | 1 RS485, Support Multi Kinds of PTZ Protocol
- USB Port | 2*USB2.0
- HDD Port | 2 SATA (each max support 6TB)
- Wireless Port | G, WIFI(extension via USB Port)
- Remote Controller | Yes
- Power | 12V/4A
- Dimension | 25(Length) x 230(Width) x 52(Height)
