Product Details
3 Wire Mini Digital Voltage Meter 0-100V Red

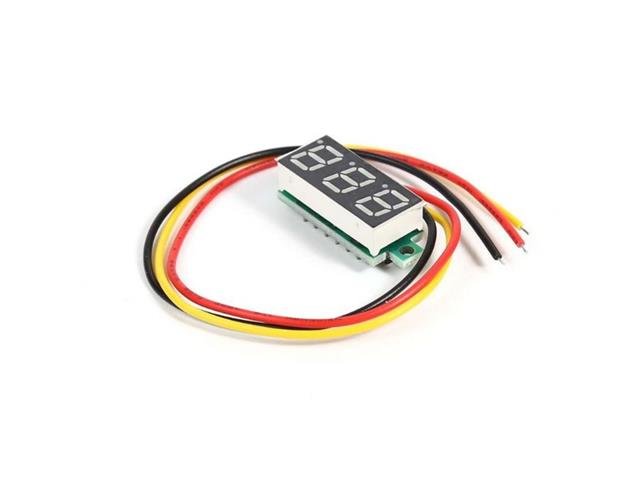

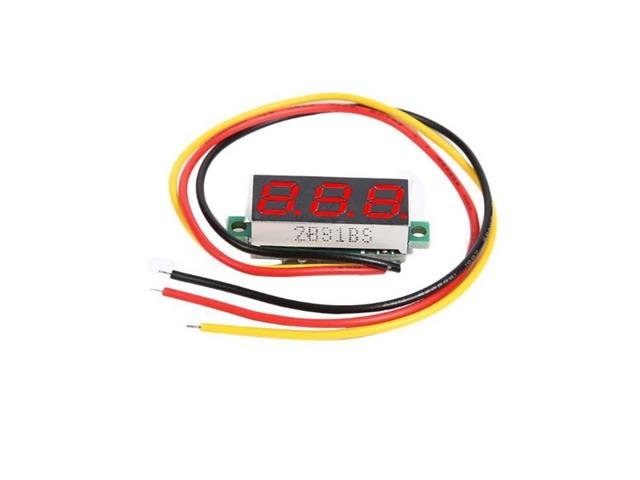

Mini Digital Voltage Meter
Features
- 0.28 inch LED screen mini size
- Can work on 5V 9V 12V 24V electronic parts
- With 3 cables and reverse connection protection
- 0-100V, it is for using 3 cables.
- Voltage should below 30V if you only using 2 cables (3.5 – 30Vdc)
- Power supply: Red (positive) and black (negative)
- Measurement: Yellow (positive) and black (negative)
- Red and yellow (positive)
- Black (negative)
Note

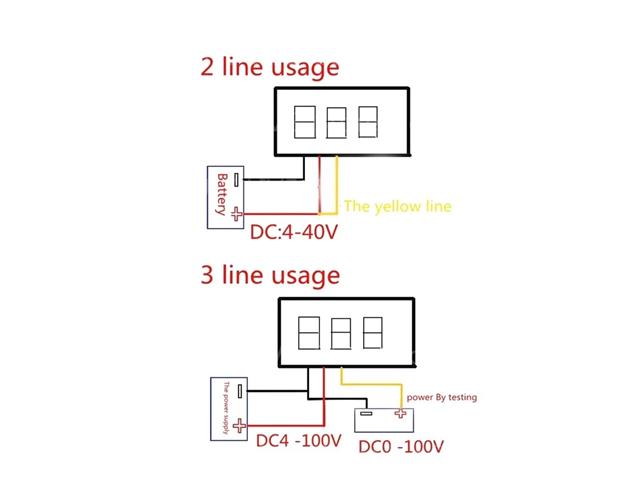

Connection
Three wires 0-100V :
Two wires 3.5-30V (power and measure from same source)
Specifications
- Display mode: Three 0.28 LED digital tube
- Display color: Green/Red/Blue/Yellow
- Update Rate: About 500 ms/time

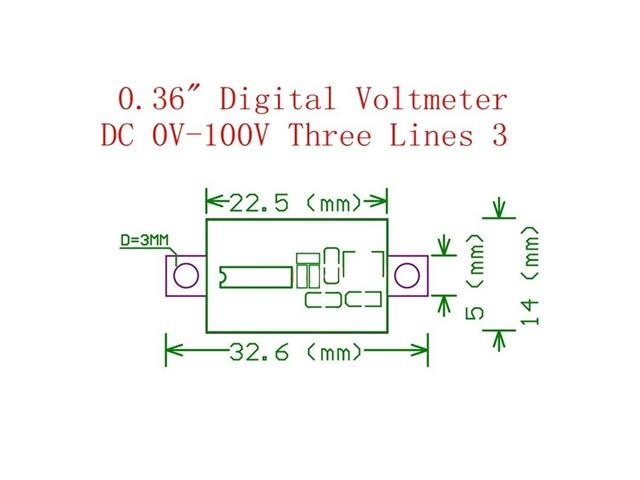

- Physical size: 30 x 12 x 8.5 mm (L*W* H, including installation ear)
- Power supply: Don't need the power supply, direct use of the test voltage as a power supply
- Lead wire length: 10 cm
- The minimum input : 3.50V
- The maximum input : 30V
- Measurement range : DC3.50 - 30V
- Operation temperature: -10 degrees~65 degrees
- Measurement accuracy : plusmn (1% + 2 Digit)
- Mounting holes distance : 26mm
- Red line : Power Supply +,Measure Voltage +,(3.50-30V DC)
- Black line : Power Supply -, Measure Voltage
Additional Information
| Device | Voltage Meter |
| Type | Mini | Digital |
