Product Details
Dahua NVR 32Ch 1U 2HDD WizSense, Smart H.265+/H.265/Smart H.264+/H.264/MJPEG, AI by Recorder: 2-Ch Face Detection & Recognition, 4-Ch Perimeter Protection & 8-Ch SMD Plus, 2xSATA Upto 16TB , VGA/HDMI, 2xUSB, RJ45, Res:4MP/5MP/8MP/12MP/16MP/24MP/32MP

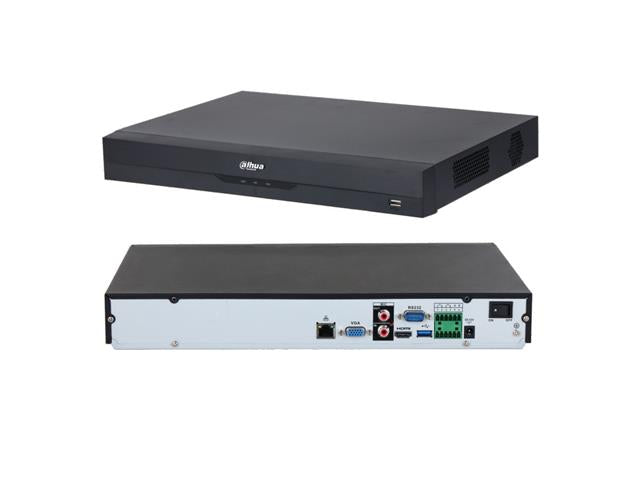

32Ch 1U 2HDD WizSense NVR
Overview
The NVR5000-EI series offers outstanding performance and high-grade
recording technology that make it ideal for IP video surveillance
applications. It has a powerful processor, that offers high access and
forwarding bandwidth and strong decoding capabilities that together
produce unimpeded streams. Thanks to its built-in AI chip and Dahua's
advanced deep learning algorithms, the NVR supports a variety of
AI functions, such as high-precision face recognition and perimeter
protection. They shorten the response time to events and make videos
more interactive. This NVR is compatible with numerous third-party
devices, making it a great solution for surveillance systems that work
with Video Management Software (VMS).
Feature(s)
- Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
- 32-channel 1080p self-adaptive decoding capability.
- Max. 384 Mbps incoming/recording/outgoing bandwidth.
- AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8 channel SMD Plus.
- AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting.
- Security baseline 2.3.
Specifications
System
- Main Processor : Industrial-grade processor
- Operating System : Embedded Linux
- Operating Interface : Web, Local GUI
AI
- AI by Recorder : Face detection; face recognition; perimeter protection; SMD Plus
AI by Camera
- Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map
Perimeter Protection
- Perimeter Performance AI by Recorder (Number of Channels) : 4 channels, 10 IVS rules for each channel
- Perimeter Performance of AI by Camera (Number of Channels) : 16 channels
Face Detection
- Face Attributes Gender; age group; glasses; expressions; face mask; beard
Face Detection
- Performance of AI by Recorder (Number of Channels) : 2 channels (up to 12 face images/s each channel)
Face Detection
- Performance of AI by Camera (Number of Channels) : 16 channels
Face Recognition
- Face Database Capacity : Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
- Face Recognition : Performance of AI by Recorder (Number of Channels) 1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s 2. 2-channe FD (by recorder) + FR (by recorder), video stream: 12 face images/s
- Face Recognition Performance of AI by Camera (Number of Channels) : 16 channels
SMD Plus
- SMD Plus by Recorder : 8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera : 16 channels
Video Metadata
- Metadata Performance of AI by Camera (Number of Channels) : 8 channels
- Human Attributes : Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella
- Motor Vehicle Attributes : License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location.
- Non-motor Vehicle Attributes : Vehicle model, vehicle color, number of persons, helmet.
Vehicle License Plate Comparison
- ANPR by Camera (Number of Channels) : 8 channels
- License Plate Database Capacity
- Create up to 20,000 plate numbers.
- Blocklist and allowlist
Audio and Video
- Access Channel : 32
- Network Bandwidth
- AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing
- AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing
- Resolution : 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF
Decoding Capability
- AI disabled:
- 2-channel 32 MP@20 fps; 2-channel 24 MP@20 fps;
- 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps;
- 8-channel 8 MP@30 fps; 12-channel 5 MP@30 fps;
- 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps
- AI enabled:
- 1-channel 32 MP@20 fps; 1-channel 24 MP@20 fps;
- 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps;
- 4-channel 8 MP@30 fps; 8-channel 5 MP@30 fps;
- 12-channel 4 MP@30 fps; 24-channel 1080p@30 fps
- Video Output
- 1-channel VGA, 1-channel HDMI video output.
- Heterogeneous video source output for HDMI and VGA
- Supports 4K display
- Multi-screen Display :
- Main screen: 1/4/8/9/16/25/36
- Sub screen: 1/4/8/9/16
- Third-party Camera Access : ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung
Compression Standard
- Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
- Audio Compression G.711a; G.711u; PCM; G726
Network
- Network Protocol : HTTP; HTTPS; TCP/IP; IPv4/IPv6; RTSP; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration
- Mobile Phone Access : iOS; Android
- Interoperability : ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK
- Browser
- Chrome
- IE 9 or later
- Firefox
Recording Playback
- Multi-channel Playback : Up to 16 channels
- Record Mode : General, motion detection; intelligent; alarm; POS
- Backup Method : USB device and network
- Playback Mode : Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Storage
- Disk Group : Yes
Alarm
- General Alarm : Motion detection; privacy masking; local alarm
- Anomaly Alarm : Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exception
Downloads
Additional Information
| Device | NVR |
| Type | 32CH | 1U | 2HDD | WizSense |
