Product Details
Lead Acid Battery Monitor 12V 1.5mA, Supply Volatge: 8~16VDC, Battery Capacity: 5-600Ah, Load/Charge Current:100A Max, Shunt: 50mV, 125x62x23mm {40-245}

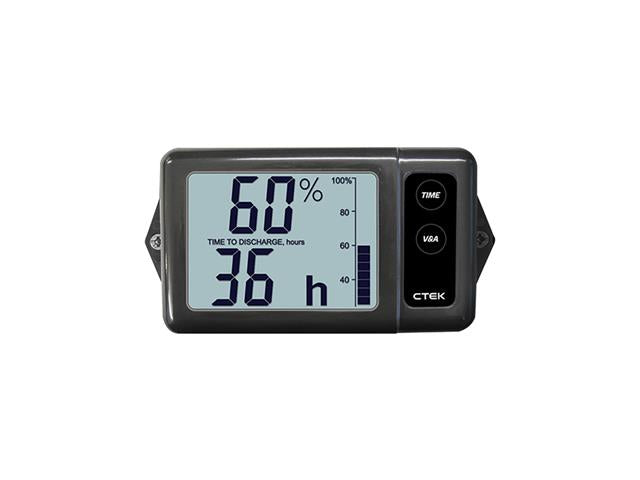

Lead Acid Battery Monitor 12V 1.5mA
Feature
- Stage of charge in %
- Battery voltage
- Charge and discharge current
- Estimated charge and discharge time remaining
Suitable for use with:
- D250SE
- I1225
- M25
Specifications
- Battery Voltage : 12V
- Battery Chemistry : Lead-acid
- Supply Voltage : 8–16VDC
- Supply Current : 1.5mA
- Battery Capacity : 5–600Ah
- Load Current : 100A Max
- Charge Current : 100A Max
- Size (W x H x D) : 125 x 62 x 23mm
- Shunt Standard : 50mV
- Warranty : 2 years
Downloads
Additional Information
| Device | Battery Monitor |
| Type | Lead Acid | 12V | 1.5mA |
