Product Details
Intercom Protection Unit
Intercom Protection Unit
Overview

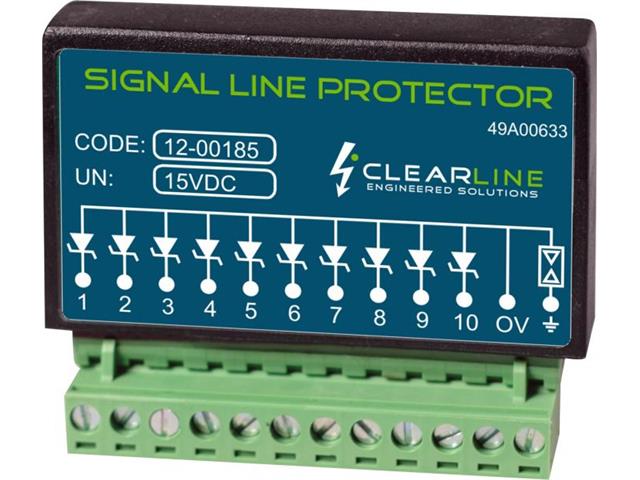

Signal line protector for a intercom system, with a maximum operating voltage of 15VDC. Fast respOnse time. Easy installation with screw terminations. Also available for 36 VDC (12-00187)
Specifications
- Max. Operating Voltage : 15VDC
- Max. Discharge Current (differential mode) : 500A (8/20us)
- Max. Discharge Current (commonl mode) : 10 kA
- Residual Voltage : <43ns
- Response Time : <25ns
- Connectors : Screw on pluggable
Downloads
Additional Information
| Keywords | Clearline, 12-00185 |
| Device | Protection Unit |
| Type | Intercom |
