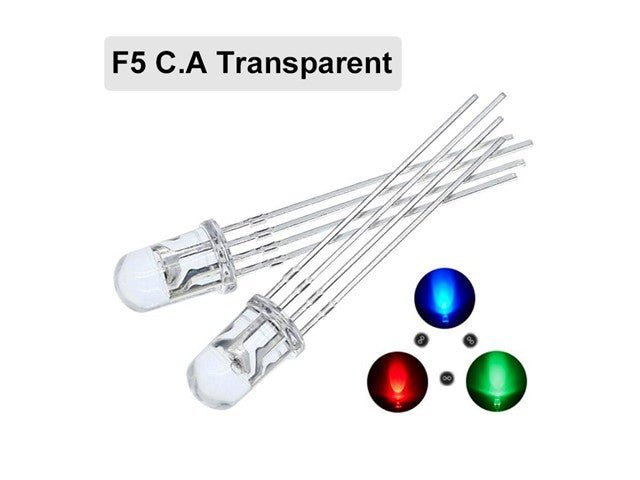

CMU RGB LED 4P 5MM C/ANODE 10/PK

CMU RGB LED 4P 5MM C/ANODE 10/PK

Dhs. 13.04
Dhs. 13.04
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Product Details

Pack Of 10 Full Colour LED 5mm 4Pin Common Anode

5mm 4Pin Full Colour LED

Specifications

  • Size: 5mm
  • Emitted Colour : Red / Green / Blue
  • Pins sequence: RED/Common Anode/Green/Blue
  • Luminous Intensity: 4000/8000/5000mcd
  • Forward Voltage (V) : 2.1~3.4
  • View Angle: About 25 degree.

Forward

  • Voltage(V)Dominant
  • wavelength(mm)KLuMen(LM)Reverse
  • current(uA)Power
  • Angle (deg)If=20mAIf=20mAIf=20mAVr=5V



Please test to add current limiting resistor, it will be very easy to burn out the LED resistance of a few hundred to 1000ohm.

  • R: wavelength 630-640nm Brightness 1000-1200mcd Voltage 1.8-2.0V
  • G: wavelength 515-512nm Brightness 3000-5000mcd Voltage 3.2-3.4V
  • B: wavelength 465-475nm Brightness 2000-3000mcd Voltage 3.2-3.4V

Additional Information

Device LED
Type 5mm | 4Pin | Full Colour
