Product Details

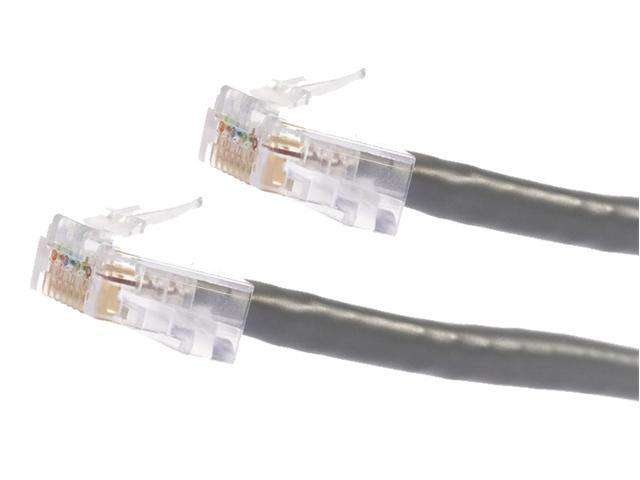

1.5m PowerSUM D8PS Cat5E UTP Stranded Modular Patch Cable in Dark Grey Colour
Overview
The GS8E modular patch cord family is the latest in a long line of innovative designs from Systimax. Unmatched electrical performance and exceeds TIA/EIA and ISO/IEC Cat6/Class E specifications. Backward compatible with Category 6, 5e, and 5 connectors
Features
| Housing | Grey |
| Cable Length | 1.5m |
| Cable End 1 | RJ-45 |
| Cable End 2 | RJ-45 |
Specification
Â
Electrical Specifications
- ANSI/TIA Category : 5e
- DC Resistance, Maximum : 0.30 ohm
- Safety Voltage Rating : 300 V
Environmental Specifications
- Environmental Space : NonÂplenum
- Flammability Rating : UL 94 V0
- Operating Temperature: : Â10°C to 60°C
- Safety Standard : Anatel, cETL, ETL
General Specifications
- Cable Type : U/UTP (Unshielded)
- Interface, Connector A : RJ45 Plug
- Interface, Connector B : RJ45 Plug
- Jacket Colour : Dark Gray
- Brand : PowerSUM | SYSTIMAX®
- Interface Feature, Connector A : Standard
- Interface Feature, Connector B : Standard
- Package, Quantity : 1
- Pairs, Quantity : 4
Mechanical Specifications
- Conductor Type : Stranded
- Material Type : Copper alloy | Polycarbonate
- Outlet/Module Contact Plating : Precious Metals
- Plug Insertion Life, minimum : 750 times
- Plug Retention Force, minimum : 133 N | 30 lbf
- Wiring : T568B
Regulatory Compliance/Certifications
- Agency : Classification
- RoHS : 2002/95/EC Compliant
- ISO 9001:2008 : Designed, manufactured and/or distributed under this quality management system
