Product Details

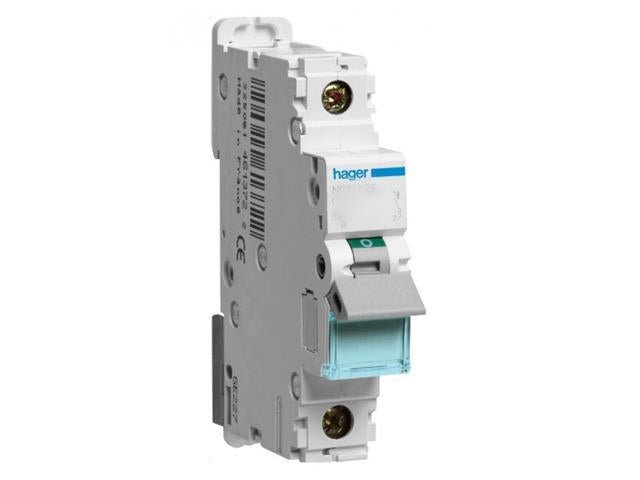

Hager Circuit Breaker 1P 20A 10Ka (D-CURVE) MCB
Circuit Breaker 1P 20A
Specifications
- Breaking capacity : 6
- Breaking capacity on 1 pole with 400 V NF 60947-2 : 3 kA
- Class of energy limitation I2t : 3
- Connection type (text) : With screw
- Correction factor of magnetic tripping with 100 Hz : 1.1
- Correction factor of magnetic tripping with 200 Hz : 1.2
- Correction factor of magnetic tripping with 400 Hz : 1.5
- Correction factor of magnetic tripping with 60 Hz : 1
- Curve : D
- Degree of pollution according to IEC 60664 / IEC 60947-2 : 2
- Depth of installed product : 70 mm
- Device family : NGN
- Electric endurance in number of cycles : 10000
- Frequency : 50/60 Hz
- Hager installation time : 90 s
- Hager wiring time : 225 s
- Height of installed product : 83 mm
- Installation time : 90 s
- Is the MCB with disconnected neutral ? : no
- Magnetic regulating currrent at 40° C : 10 IN; 14.4 IN
- Maximum downstream fuse rating aM for selectivity on DC : 4 A
- Maximum downstream fuse rating gL for selectivity on DC : 12 A
- min/maxi threshold value of the AC thermal operation : 1.13 IN; 1.45 IN
Downloads
Additional Information
| Device | Circuit Breaker |
| Type | 1P | 20A |
