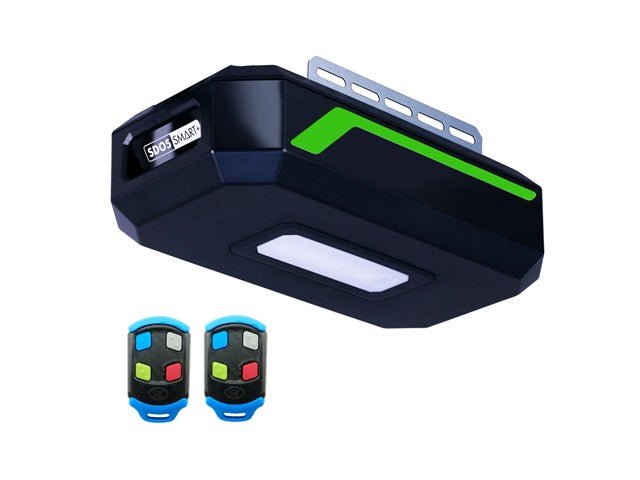

Centurion SD05 Smart T10 GDO Head Unit, AC Driven, Including Charger & 2x4-Button Nova Remotes, Excludes: CEN SD05BATKIT01 (SD05 SMART BATTERY BACK UP KIT 2x2.9AH)
SD05 Smart T10 GDO Head Unit
Features
- Drive system: Belt drive for quiet garage operation
- Safety: Built-in collision sensing with auto-reverse; adjustable sensitivity
- 24V drive system: Mains powered, with T10 suited to standard home garage doors
- Connectivity: BLE and Wi-Fi
- Accessories integration: Two configurable input/output channels and one input
- Receiver capacity: 30 x 4-Button Transmitters
Specifications
| Technical Data |
SDO5 SMΔRT+ T10 |
| Input voltage |
220V – 240V AC @ 50/60Hz |
| Motor voltage |
24V DC |
| Motor power supply – rated |
80W DC |
| Motor supply |
Mains driven 110 VA Thermally fused Toroidal Transformer |
| Maximum door width |
6.5m |
| Maximum door area |
12m² |
| Max holding capacity |
1000N |
| Maximum push/pull force |
40kgf |
| Battery Backup |
Optional 2.9Ah Battery Backup |
| Charging rate |
870mA Charging Rate with built-in Battery Saving and testing functionality |
| Operations in standby mode |
Up to 70 depending on the door size/weight/height/duration of power failure/condition of batteries |
| Operator travel speed |
9m/min |
| Wireless Communication |
BLE and Wi-Fi (2.4GHz) |
| Door travel adjustment |
Physical end-stops (Automatic limit set) |
| Safety obstruction force system |
Built-in Hall Effect and Current-sensing – Adjustable in MyCentsys Pro |
| Light |
Integrated LED Courtesy Light |
| Autoclose |
Adjustable in MyCentsys Pro |
| Infrared safety beams |
Compatible with Wired or Wireless (Optional but recommended) – Configured in MyCentsys Pro |
| Radio receiver |
Code-hopping 433MHz |
| Receiver code storage capacity |
30 × 4-button NOVA transmitters |
| Degree of protection |
IPX0 (For interior use only) |
