Product Details

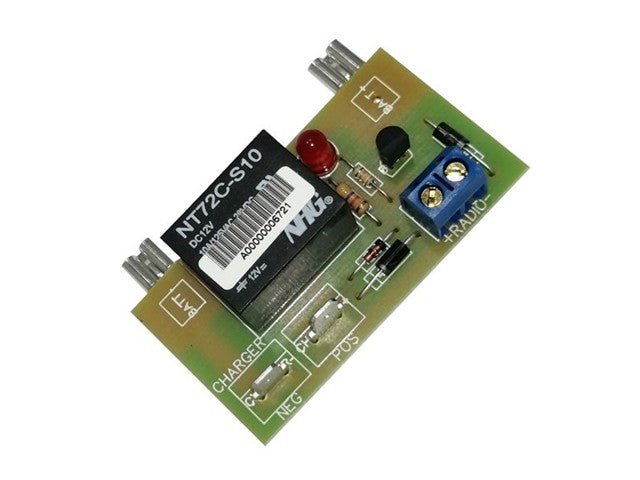

Low Battery Cut-Out When Voltage Drops To 10.5V Preventing Battery To Discharge Completely (Current Rating 10A@ 12 VDC)
Low Battery Cut out - Plug on
Specifications
- Supplied with lugs to plug directly onto Battery
- 5mm PCB connectors for charger wiring
- Automatically cuts power when battery voltage falls to 10.5 volts, thereby preventing battery from discharging completely
- Automatically restores power to battery when charger voltage is re-applied
- LED indication of low battery status, on when battery ok
- Current rating 10A@ 12 VDC
- Physical size: 57mm x 36mm
Downloads
Additional Information
| Device | Plug on |
| Type | Low Battery | Cut out |
