Product Details

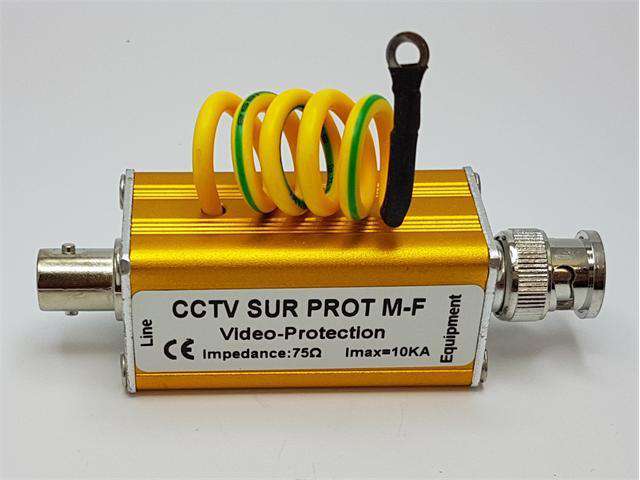

CCTV Data Line Surge Protector with BNC Male - Female
Overview
Suitable to prevent over-voltage of correlated equipments which transmit video signals and data signals via coaxial cables.
Features
- Large through-flow capacity
- Multilevel Protection
- Fast Response Speed
- Small Insertion Loss
- Capable of avoiding interference of signal without grounding scheme.
Specification
- Interface Type : Input BNC , Output BNC
- Characteristic Impedance : 75ohms
- Max Continuous Working Voltage : 5 5V
- Limited Voltage : 8.8V
- Max Discharge Current : 10KA
- Response time :<0 5ns
- Bandwidth : 10M
- Insertion Loss : <0.3dB
- Working temperature : 60~190°C
