Product Details

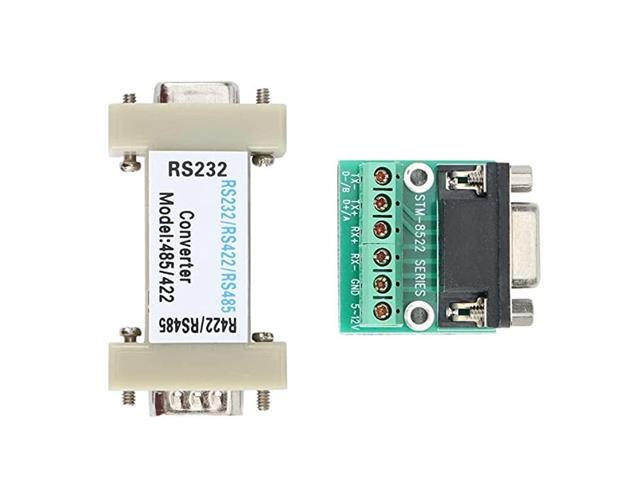

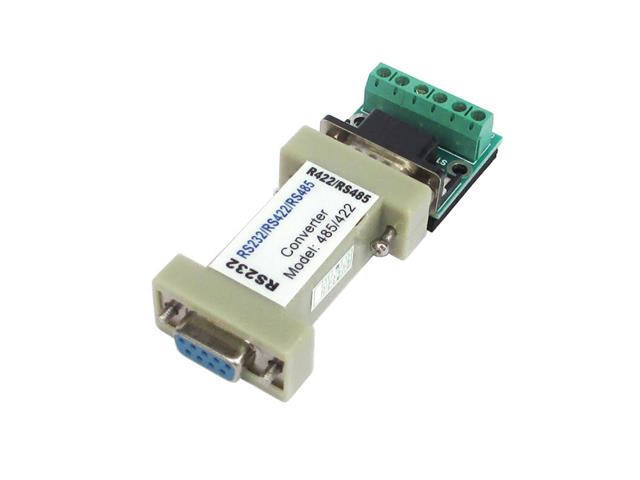

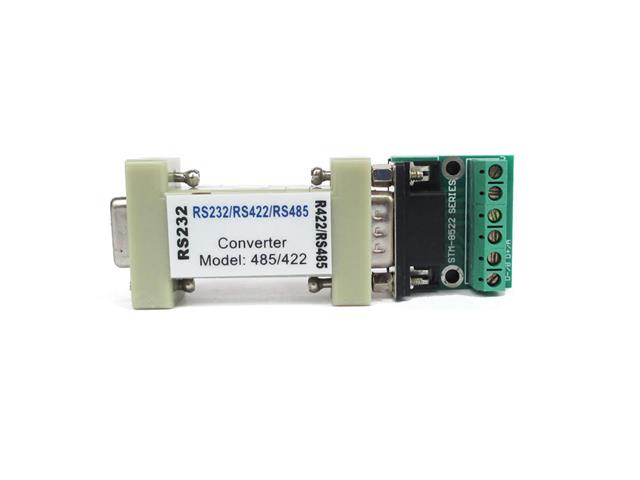

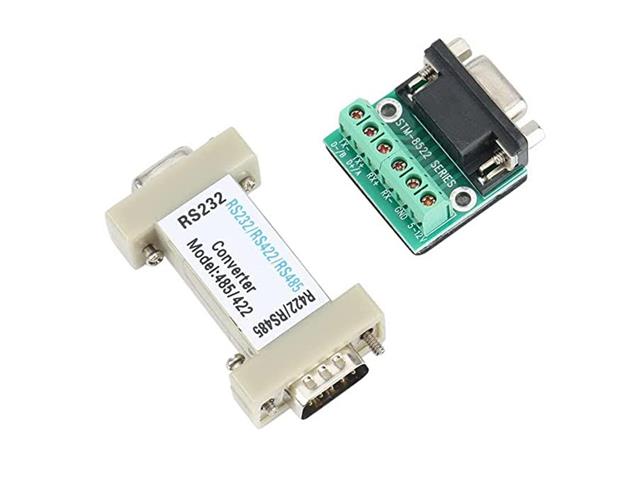

RS232 to RS485/422 Converter
RS232 to RS485/422 Converter
Specifications
- Compatibility: EIA/TIA RS232C standard and RS485/RS422 standard
- Interface RS232 side: DB9 female connector
- Interface RS485/RS422 side: DB9 male connector with optional (included) terminal board
- Transmission rate: 300 to 115,200bps
- Transmission distance: RS422 maximum 1200m, RS232 side maximum 5m
- Working modes: asynchronous, duplex and differential transmission
- Working environment: 0 to 70°C
- Relative humidity : 5 to 95%
- Mechanical dimensions: 95 x 33 x 17mm
Additional Information
| Device | Converter |
| Type | RS232 to RS485/422 |
