Product Details
Lithium Ion Rechargeable Battery (LiFePO4) 12.8V 8AH 102.4Wh, High Cycle Life:<6000 at 80%DOD, Max Discharge Current:20A, Max Charge Current:8A, Built-in-BMS, End of Discharge Voltage:10.5V, F1 Terminal 4.8mm, 151x65x95mm, IP56, 0.94Kg. 1 Year Warranty

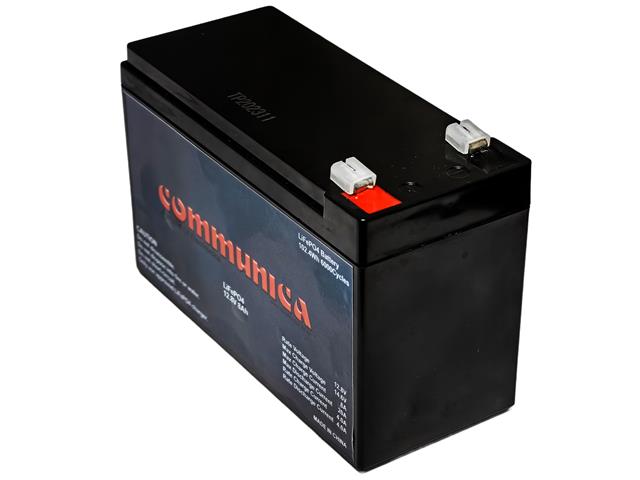

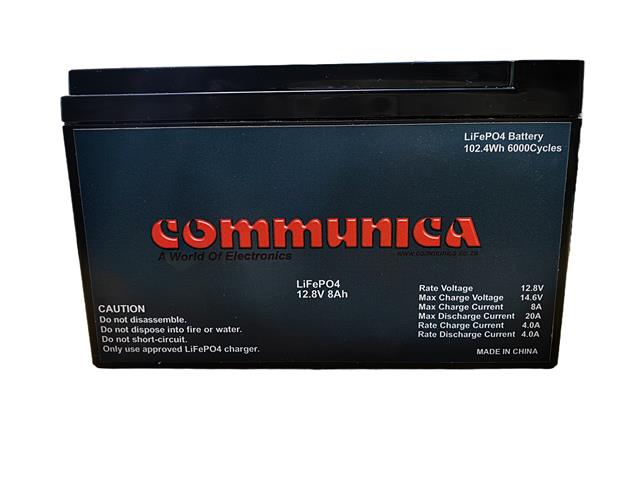

12.8V Lithium Ion Rechargeable Battery
Specifications
Nominal Characteristic
- Nominal voltage : 12.8V
- Typical capacity : 8Ah(25°C,0.2C)
- Typical energy : 102.4Wh
- Cells type/chemistry : Prismatic-LiFePO4
- Gravimetric Energy density : 108.9Wh/Kg
Dimensions
- Height : 94mm
- Width : 65mm
- Length : 151mm
- Reference Weight : 0.94Kg
- Case Material : ABS
- Cycle life : >6000 cycles(80% DoD)
Electric Characteristics
- Charge Method : CC/CV
- Charge voltage Range : 14.3~14.6V
- Max continuous Discharge Current : 20A
- Max continuous Charge Current : 8A
- Discharge Pulse Current (10 sec) : 40A
- Standard charge current (0.2C) : 1.6A
- End of Discharge Voltage : 10.5V
Operation Environment
- Operating Temperature : -20°C~+70°C
- Charge Temperature : 0°C~55°C
- Discharge Temperature : -20°C~60°C
- Storage Temperature : -10°C~50°C
- Protection Class : IP56
Downloads
Additional Information
| Device | Battery |
| Type | 12.8V | Lithium Ion | Rechargeable |
