Product Details

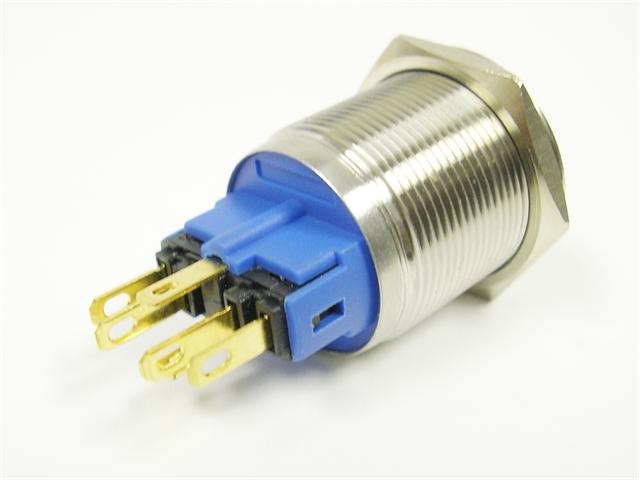

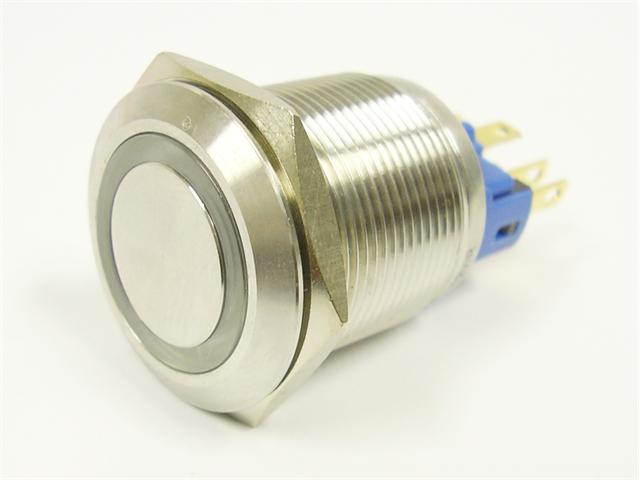

Vandal Resistant Push Button Switch 22mm Latching Flat Button. Red Ring LED 12V - 1n/o - 1c/o 5A-250VAC -IP65- Stainless Steel (Anti Vandal)
Vandal Resistant Push Button Switch
Downloads
Additional Information
| Device | Switch |
| Type | Vandal Resistant | Push Button |
| Transition Style | Latching |
| Actuator Style | Round Flat Push Button |
| Operation Type | Latch |
| Switch Circuit | 1N/O 1N/C |
| Voltage Rating | 250V |
| Voltage Type | AC |
| Current Rating | 5A |
| Contact Rating | 5A @ 250VAC |
| No. of Poles | 1 |
| LED Colour | Red |
| LED Voltage | 12V |
| Indicator | Ring Illuminated |
| Size | Ø22mm |
| IP Rating | IP67 |
