Product Details

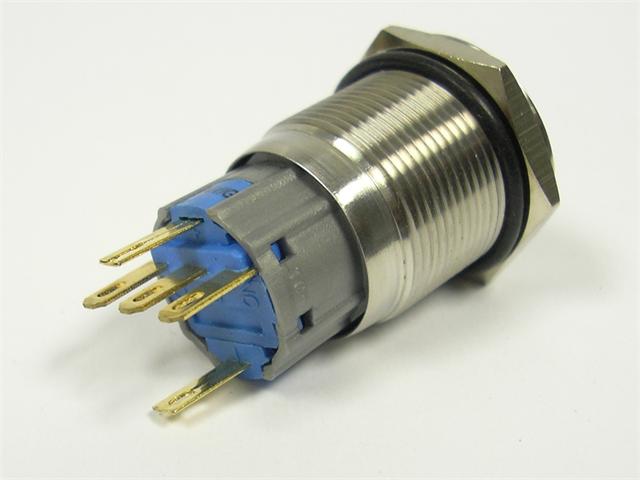

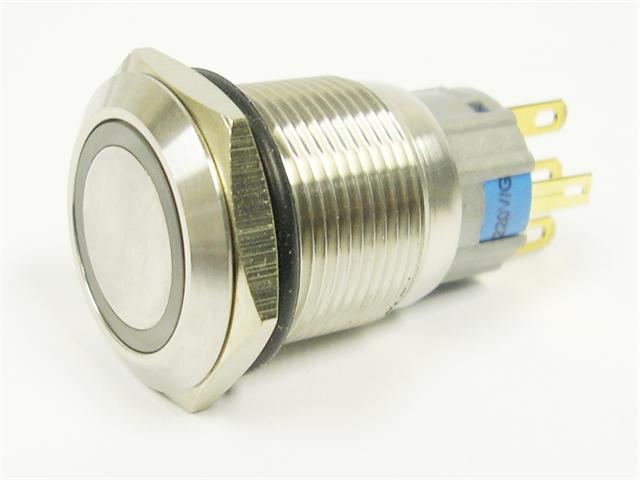

Vandal Resistant Push Button Switch 19mm Latching. Flat Button. Green Ring LED 220V - 1c/o 5A-250VAC -IP67- Stainless. Steel (Anti Vandal)
Vandal Resistant Push Button Switch
Downloads
Additional Information
| Device | Switch |
| Type | Vandal Resistant | Push Button |
| Transition Style | Latching |
| Actuator Style | Round Flat Push Button |
| Operation Type | Latch |
| Termination | Solder-Lug |
| Switch Circuit | 1C/O |
| Voltage Rating | 250V |
| Voltage Type | AC |
| Current Rating | 5A |
| Contact Rating | 5A @ 250VAC |
| Electrical Life | 50000 Cycles |
| No. of Poles | 1 |
| LED Colour | Green |
| LED Voltage | 220V |
| Indicator | Ring Illuminated |
| Size | Ø19mm |
| Mechanical Life | 1000000 Cycles |
| IP Rating | IP67 |
