Product Details

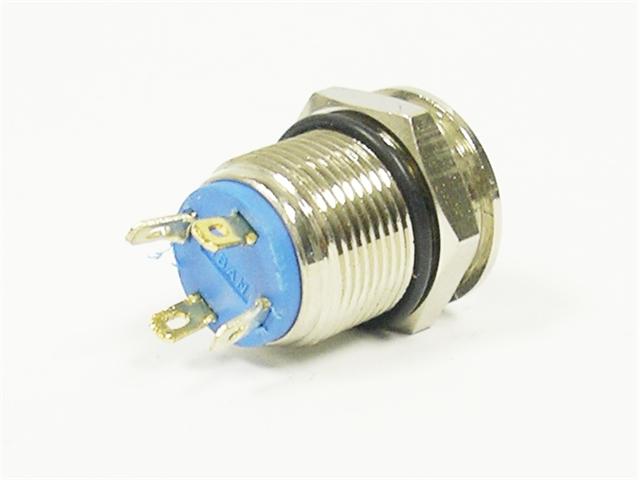

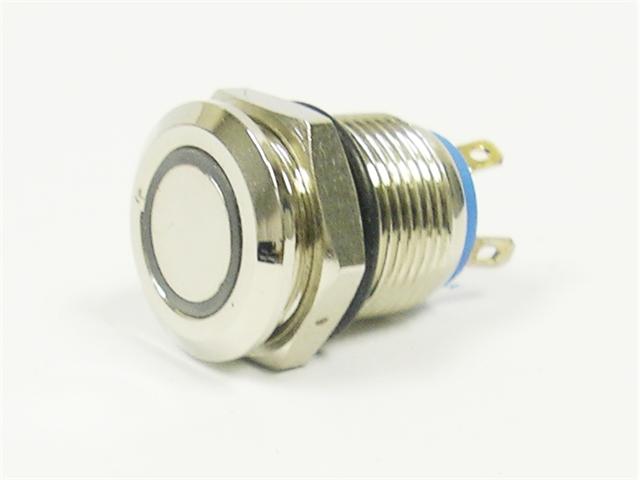

Vandal Resistant Push Button Switch 12mm Momentary Flat Button. Red Ring LED 12V - 1n/o 2A-36VDC -IP65- Nickel Plated Brass (Anti Vandal)
Vandal Resistant Push Button Switch
Downloads
Additional Information
| Device | Switch |
| Type | Push Button |
| Highlights | Vandal Proof | Nickel Plated Brass | IP65 |
| Transition Style | Momentary |
| Actuator Style | Round Flat Push Button |
| Operation Type | Momentary |
| Switch Circuit | 1N/O |
| Voltage Rating | 36V |
| Voltage Type | DC |
| Current Rating | 2A |
| Contact Rating | 2A @ 36VDC |
| No. of Poles | 1 |
| Size | Ø12mm |
| IP Rating | IP65 |
