Product Details
Ajax Power Supply 12V 1A, I/P: 8-20VDC, O/P:4.65VDC ± 3%, Switch On Voltage:8VDC ± 2.5%, Switch-off Voltage:6.9-7.5VDC Depending On Load, (Compatible With: Hub - Hub Plus Control Panels & Rex Singnal Range Extender), 138×64×13mm, 30g

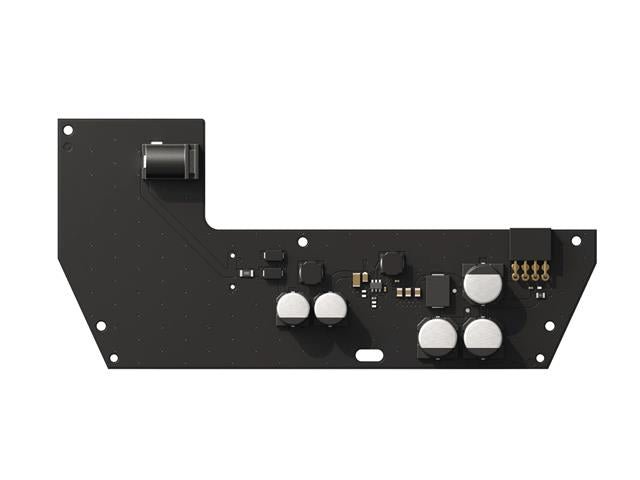

Power Supply 12V 1A
Specifications
- Compatibility : Hub, Hub Plus, ReX
- Input voltage : 8-20 V DC
- Output voltage : 4.65 V ± 3%
- Switch-on voltage : 8 V ± 2.5%
- Switch-off voltage : 6.9-7.5 V (depending on load)
- Input current : <1 А
- Output current : 1,5 А
- Connection
- Socket: 6,5 × 2 mm
- Plug: 5,5 × 2,1 mm (power jack)
- Dimensions : 138 × 64 × 13 mm
- Weight : 30 g
- Complete set
- 12V PSU for Hub/Hub Plus/ReX
- Terminal adapter
- Quick guide
Downloads
Additional Information
| Device | Power Supply |
| Type | 12V | 1A |
