Product Details
IC
Specifications
|
Number of Bits
|
8
|
|
Number of D/A Converters
|
1
|
|
Settling Time
|
500ns
|
|
Output Type
|
Current - Unbuffered
|
|
Differential Output
|
Yes
|
|
Data Interface
|
Parallel
|
|
Reference Type
|
External
|
|
Voltage - Supply, Analog
|
5V ~ 15V
|
|
Voltage - Supply, Digital
|
5V ~ 15V
|
|
INL/DNL (LSB)
|
±0.5 (Max), -
|
|
Architecture
|
R-2R
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|

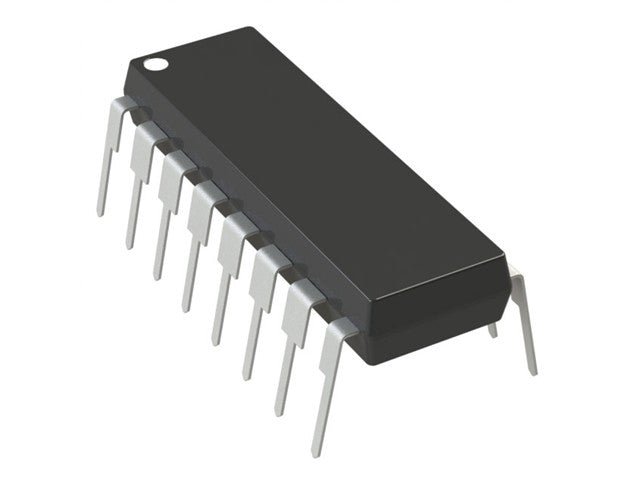

Package / Case
|
16-DIP (0.300", 7.62mm)
|
|
Supplier Device Package
|
16-PDIP
|
|
Mounting Type
|
Through Hole
|
Additional Information
| Device | IC |
