Product Details
Access Conrol Keypad. WiFi to TUYA. Bluetooth to TUYA. 2 000 Cards or Password User as a Standalone Keypad
Access Conrol Keypad
Overview
The device is a standalone access control and proximity card reader which supports EM card type A(125kHz). It has an STC microprocessor, with a strong anti-interference ability, high security and reliability, powerful function and convenient operation. It’s widely used in high-end buildings, residential communities and other public places.
Features
- Ultra-low Power: Standby current is less than 30mA
- Wiegand Interface: WG26 or WG34 input and output
- Searching time: Less than 0.1s after reading card
- Backlight keypad: Operate easily at night
- Doorbell interface: Support external wired doorbell
- Access ways: Card, Pin code, Card & Pin code
- Independent codes: Use codes without related card
- Change codes: Users can change codes by themselves
Package Included:
- 1 x WIFI Tuya Access Control Keypad
- 1 x Manual
- 1 x Screw pack
Specifications
- Operating Voltage : DC 12V±10%
- User Capacity : 2000
- Card Reading Distance : 3-6 cm
- Active Current : ＜60mA
- Idle Current : 25±5 mA
- Lock Output Load Max : 3A
- Alarm Output Load Max : 20A
- Operating Temperature : -45℃～60℃
- Operating Humidity : 10%- 90% RH
- Adjustable Door Relay time : 0 - 99 seconds
- Adjustable Alarm Time : 0 - 3 minutes
- Wiegand Interface Wiegand : 26 bit

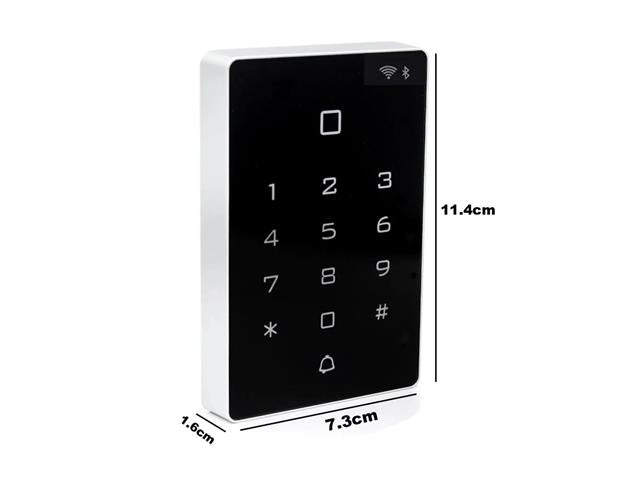

- Size : 117*71*22mm
Downloads
Additional Information
| Device | Keypad |
| Type | Access Conrol |
