Product Details

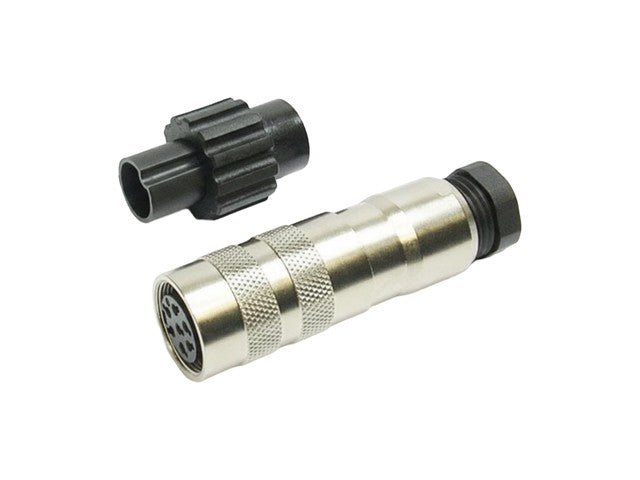

Circular Connector M16 Cable Female Straight 7 Pol Silver Plated Contacts Screw Lock 8mm Cabl Entry Shielded IP67
Circular Connector M16 Cable
Downloads
Additional Information
| Device | Cable Connector |
| Type | Cylindrical | Circular | Miniature |
| Highlights | with shielding ring | with mounting Tool indicated by -16- |
| Gender | Female |
| No. of Contacts | 7 |
| No. of Pins | 7 |
| Series | 423 |
| Locking System | Screw Locking |
| Termination | Solder |
| Size | M16 |
| Cable | cable outlet 6~7.8mm |
| Electrical Rating | 125 5A |
| Wire Range | 20 AWG 0.75mmsq |
| Degree of Protection | IP67 |
