Product Details

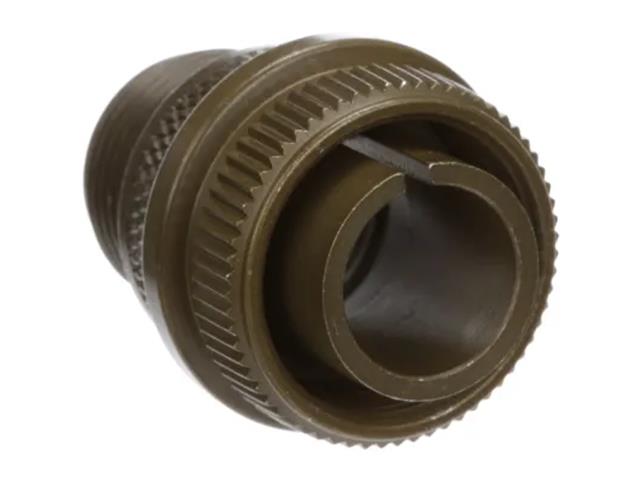

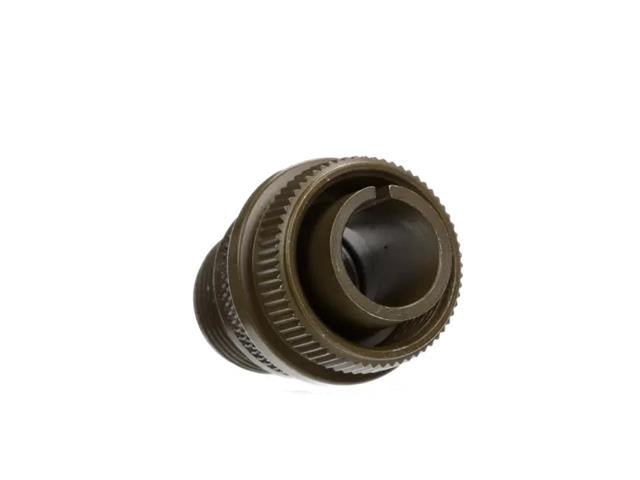

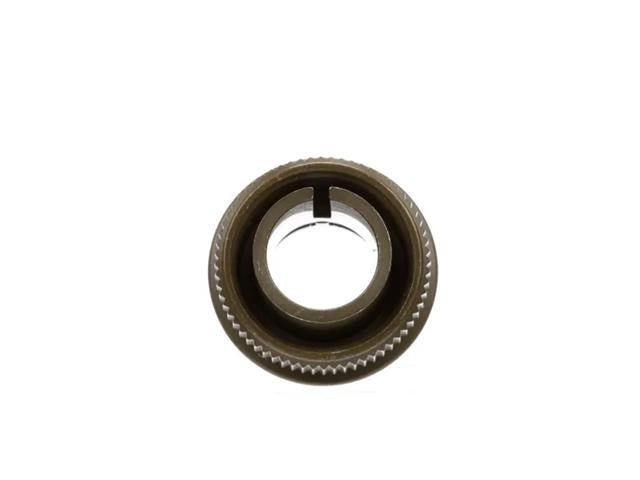

Circular Connector Cable End Plug Shell Size 14S - 97 Series C-5015
Cable End Plug Shell
Feature(s)
- Low cost, general duty non-environmental
- Splash proof with the 417 suffix plus 97-67 cable clamp (see page 34)
- Low cost, general duty non-environmental
- Environmental capability with the 417 suffix plus 9767 cable clamp (see page 34)
- Solder or crimp termination
- Wide selection of shell styles and insert patterns
- Wide selection of connector finishes cadmium or non-cadmium (environmentally friendly zinc alloy)
- Threaded coupling, hard dielectric inserts
- Solid or split shell construction
- Accessories for both individual wire seal and jacketed cable
- Threaded coupling, hard dielectric inserts
- Solid or split shell construction
- Accessories for both individual wire seal and jacketed cable
- Durable, field-proven design
- Non-rotating contacts
- RoHS Compliant Product Available EU/2002/95/EC
- UL Recognized E115497
- CSA Recognized LR69183
Specifications
- Agency Approvals: UL/CSA
- Angle: Straight
- Application: Commercial
- Class: A
- Contact Type: Socket
- Family Name: 97 Series Connector Family
- For Use With: 97 Series Type MIL-5015
- Gender: Plug Shell Only
- Housing Finish: Olive Drab Cadmium
- Housing Material: Aluminum Alloy
- Housing Type: Metal
- IP Rating: IP67
- Mating Type: Female
- MIL Type: SAE AS50151
- Mounting Type: Free Hanging
- Number of Contacts: None
- Primary Type: MIL-5015
- Series: 97 Series
- Shell Size: 14S
- Strain Relief: Solid
- Type: 5015 Commercial
Downloads
Additional Information
| Device | Plug Shell |
| Type | Cable End |
| Highlights | Shell only - No Insert. Str Relief 3057-1007. Rubber Bush 3420-6 |
