Product Details

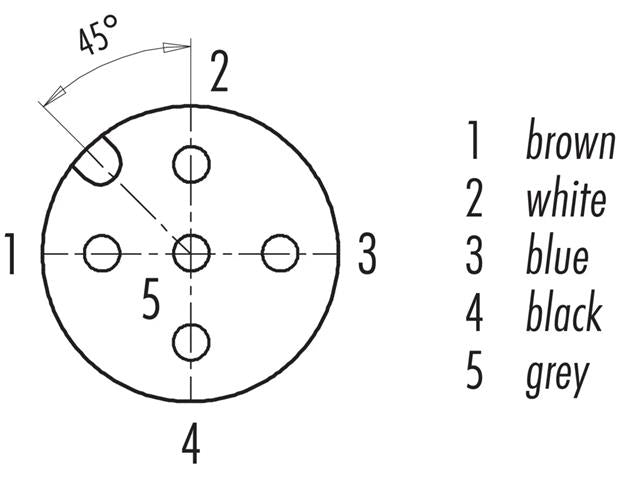

Cordset M12 A COD Female Stright. 5 Pole - Single End - 2M PUR CableIP67/IP69K - UL Approved

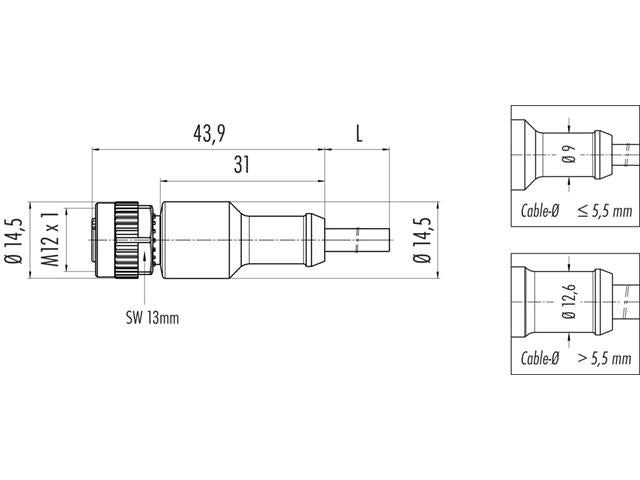

M12 Female Cable Connector
Specifications
- Connector design : Female cable connector
- Type standard : DIN EN 61076-2-101
- Cable length : 10 m (Other lengths are available on request).
- Version : Connector socket straight
- Connector locking system : screw
- Termination : moulded on the cable
- Degree of protection : IP69K
- Cross-sectional area : 0.34 mm² / AWG 22
- Temperature range from/to : -25 °C / 90 °C
- Mechanical operation : > 100 Mating cycles
- Weight (g) : 415
Structure of the cable
- Cable diameter : 4.3 mm
- Cross section : 3 x 0.34 mm²
- Sheath material : PUR
- Single-lead insulation : PP9Y halogen-free
- Single-lead structure : 43 x 0.10 mm
- Cable color : black
Electrical properties
- Conductor resistance : 60 Ω/Km (20°C)
Mechanical properties
- Bending radius, fixed cable : ≥ 5 x Ø
- Bending radius, moving cable : ≥ 10 x Ø
- Bending cycles : > 5 million
- Permitted acceleration : ≥ 5 m/s²
- Travel distance, horizontal : ≥ 5 m
- Travel distance, vertical : ≥ 5 m
- Travel speed : ≤ 200 m/min
Thermal properties
- Temperature range cable in move from/to : -25 °C / 80 °C
- Temperature range cable fixed from/to : -50 °C / 80 °C
Downloads
Additional Information
| Device | Connector |
| Type | M12 | Female | Cable |
