Product Details

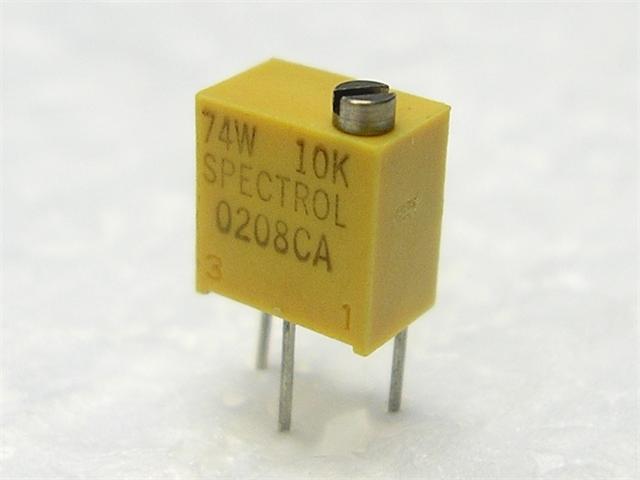

Multiturn Cermet Trimmer Potentiometer, Model : 74, Size 6.35mm Sq • PCB-W • Top Adjust • ¼W @ 85°C • 1MΩ • ±10% • 12 Turns
Downloads
Additional Information
| Model | 74 |
| Device | Cermet Trimmer |
| Type | Multiturn |
| Size | 6.35mm Sq |
| Termination | PCB-W |
| Power Rating | ¼W @ 85°C |
| Tolerance | ±10% |
| Tolerance Code | K |
| Element Type | Cermet |
| No. of Turns | 12 Turns |
| Adjust Style | Top Adjust |
| Mechanical Life | 200 Cycles |
