Product Details

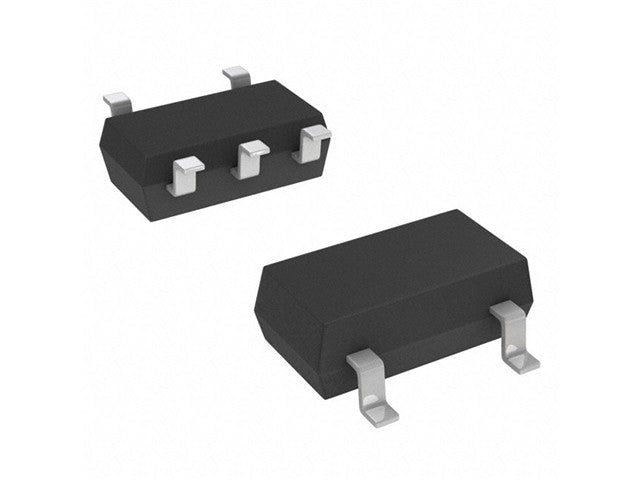

OR Gate Single 2-Input SOT23-5L
Specifications
|
Logic Type
|
OR Gate |
|
Number of Circuits
|
1
|
|
Number of Inputs
|
2
|
|
Voltage - Supply
|
2V ~ 5.5V
|
|
Current - Quiescent (Max)
|
1 µA
|
|
Current - Output High, Low
|
8mA, 8mA
|
|
Input Logic Level - Low
|
0.5V
|
|
Input Logic Level - High
|
1.5V
|
|
Max Propagation Delay @ V, Max CL
|
7.5ns @ 5V, 50pF
|
|
Operating Temperature
|
-55°C ~ 125°C
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
SOT-323-5
|
|
Package / Case
|
5-TSSOP, SC-70-5, SOT-353
|
Additional Information
| Device | IC |
