Product Details

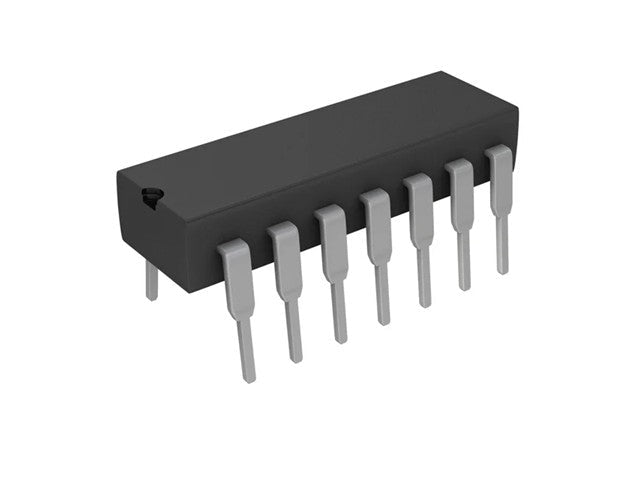

Inverter Hex Schmitt-Trigger 14PD
Specifications
|
Number of Circuits
|
6
|
|
Number of Inputs
|
1
|
|
Features
|
Schmitt Trigger
|
|
Voltage - Supply
|
4.5V ~ 5.5V
|
|
Current - Quiescent (Max)
|
2 µA
|
|
Current - Output High, Low
|
4mA, 4mA
|
|
Input Logic Level - Low
|
0.5V ~ 0.6V
|
|
Input Logic Level - High
|
1.9V ~ 2.1V
|
|
Max Propagation Delay @ V, Max CL
|
30ns @ 5.5V, 50pF
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Mounting Type
|
Through Hole
|
|
Supplier Device Package
|
14-PDIP
|
|
Package / Case
|
14-DIP (0.300", 7.62mm)
|
Additional Information
| Device | Inverter |
