Product Details

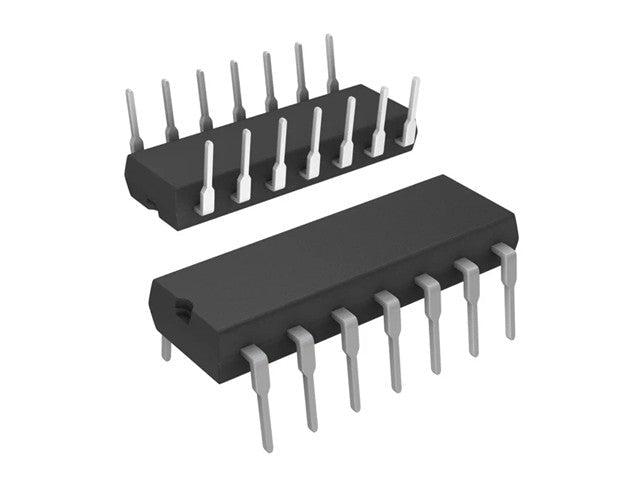

Gate NOR Positive Quad 2-Input 14PD
Specifications
|
Logic Type
|
NOR Gate |
|
Number of Circuits
|
4
|
|
Number of Inputs
|
2
|
|
Voltage - Supply
|
4.5V ~ 5.5V
|
|
Current - Quiescent (Max)
|
2 µA
|
|
Current - Output High, Low
|
4mA, 4mA
|
|
Input Logic Level - Low
|
0.8V
|
|
Input Logic Level - High
|
2V
|
|
Max Propagation Delay @ V, Max CL
|
19ns @ 4.5V, 50pF
|
|
Operating Temperature
|
-40°C ~ 125°C
|
|
Mounting Type
|
Through Hole
|
|
Supplier Device Package
|
14-DIP
|
|
Package / Case
|
14-DIP (0.300", 7.62mm)
|
Additional Information
| Device | Logic Gate |
