Product Details

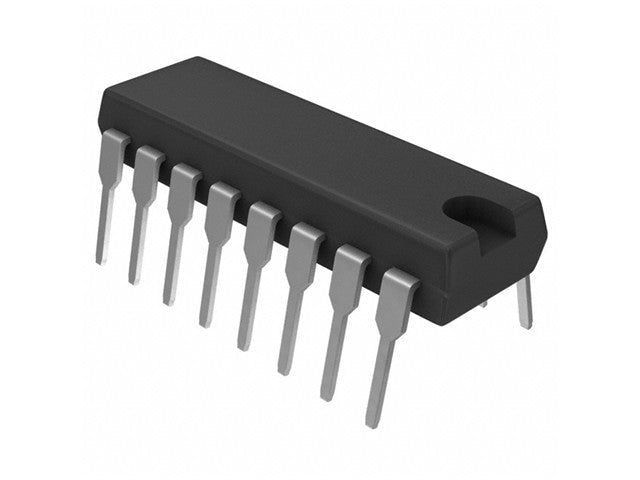

4-Bit Magnitude Comparator
Specifications
|
Series
|
74HC
|
|
Package
|
Tube
|
|
Part Status
|
Active
|
|
Type
|
Magnitude Comparator
|
|
Number of Bits
|
4
|
|
Output
|
Active High
|
|
Output Function
|
A<B, A=B, A>B
|
|
Voltage – Supply
|
2V ~ 6V
|
|
Current – Output High, Low
|
5.2mA, 5.2mA
|
|
Max Propagation Delay @ V, Max CL
|
33ns @ 6V, 50pF
|
|
Operating Temperature
|
-55?C ~ 125?C
|
|
Package / Case
|
16-DIP (0.300″, 7.62mm)
|
|
Supplier Device Package
|
16-PDIP
|
|
Mounting Type
|
Through Hole
|
|
Base Product Number
|
74HC85
|
Additional Information
| Device | Comparator |
