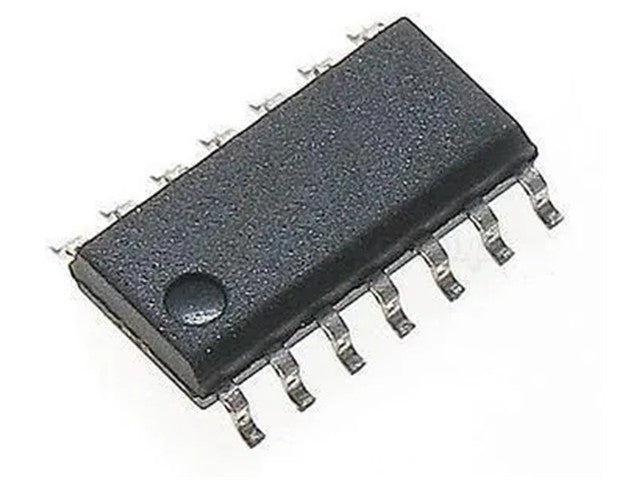

NAND Gate Quad 2-Input O/C SO14
Specifications
|
NAND |
|
4 Gate |
|
HC |
|
2 Input |
|
SOP-14 |
|
1 Output |
|
5.2 mA |
|
60 ns |
|
2 V |
|
6 V |
|
- 55 C |
|
+ 125 C |
|
SMD/SMT |
|
Tube |
| Brand: |
STMicroelectronics |
| Function: |
Gate |
| Height: |
1.65 mm |
| Length: |
8.75 mm |
| Logic Type: |
2-Input NAND |
| Operating Supply Voltage: |
2.5 V, 3.3 V, 5 V |
| Output Type: |
Open Drain |
| Product: |
Single-Function Gates |
| Product Type: |
Logic Gates |
| Series: |
M74HC03 |
