Product Details

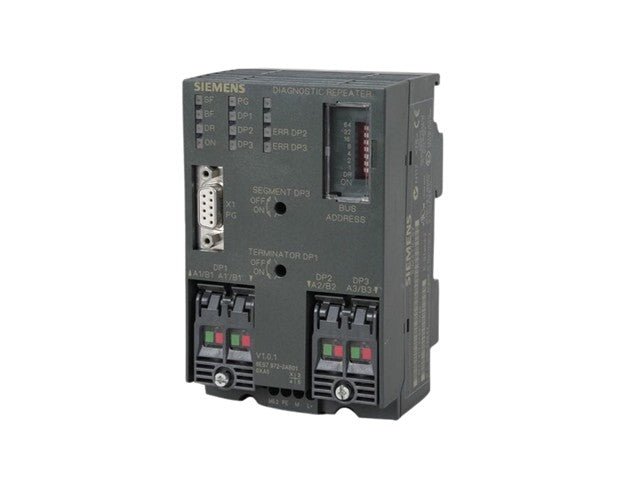

SIMATIC S7, Diagnosis-Repeater for Profibus DP - Standard Slave TO 12MBIT/S
Specifications
-
Supply Voltage
- Rated value (DC): 24 V
- Permissible range, lower limit (DC): 20.4 V
- Permissible range, upper limit (DC): 28.8 V
-
Power Loss
- Typical power loss: 4 W
-
Interfaces
- PROFIBUS DP
- Transmission rate: 9.6 kbit/s to 12 Mbit/s
- Maximum transmission rate: 12 Mbit/s
- PROFIBUS DP
-
Degree and Class of Protection
- IP degree of protection: IP20
-
Ambient Conditions
- Operating temperature:
- Minimum: 0 °C
- Maximum: 60 °C
- Storage/transport temperature:
- Minimum: -40 °C
- Maximum: 70 °C
- Relative humidity during operation:
- Maximum: 95% at 25 °C
- Operating temperature:
-
Connection Method
- Electrical connection for supply voltage: Terminal module
- Electrical connection for PROFIBUS cables: FastConnect insulation displacement (up to 10 clamping cycles)
-
Dimensions
- Width: 80 mm
- Height: 125 mm
- Depth: 67.5 mm
-
Weight
- Approximate weight: 300 g
